R1S-0505/H by recom

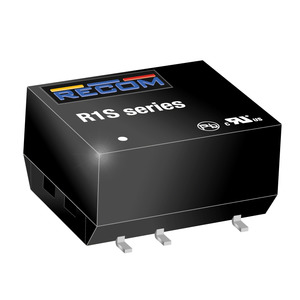

Image is representational - see manufacturer specifications
RECOM Authorized Distributor

R1S-0505/H

The R1S-0505/H is a 1W, unregulated, single-output SMD DC/DC converter with a 5V input, 5V output, and 3kVDC isolation. ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The R1S-0505/H is a 1 Watt, surface-mount, unregulated DC/DC converter designed for low-power isolation and voltage matching applications. It converts a nominal 5VDC input to a single 5VDC output, delivering up to 200mA of current with an efficiency of 72-78%. This model, identified by the '/H' suffix, provides high isolation of 3kVDC and is certified for medical safety standards (EN-60601-1). The converter operates at full power across an extended ambient temperature range of -40°C to +100°C without derating and has a typical output ripple of 50mVp-p. As an enclosed open-frame component suitable for fully automated assembly, it is ideal for use in general-purpose and industrial equipment where a compact, isolated power source is required.

Search Keywords: R1S0505H

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
RECOM
Part No:
R1S-0505/H
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409580
COO:
TW
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
40
Package Type:
TUBE
Dimension:
12.75 x 10.7 x 6.74388mmmm
  Different packaging options available.  See Alternatives

IN STOCK: 679

Can Ship immediately

Manufacturer Stock: 1,000   can ship 11/16/26

Minimum Order Quantity: 5

Factory Lead-Time 20 Weeks can ship 3/22/27

Price (USD)

Qty
Unit Price
5
$9.64
40
$8.57
80
$8.44
120
$8.40
280
$8.38
520
$8.36
1,000 +
$8.34
Supplier's Standard Package
