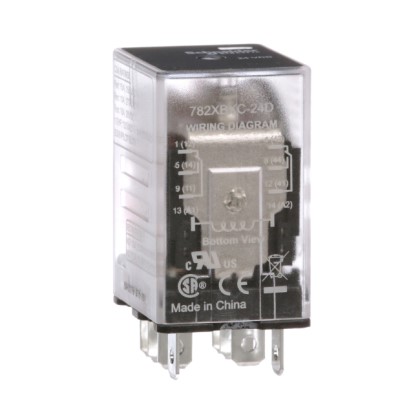

Power relay - SE Relays - 15A - DPDT - 24 VDC - clear cover ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part 782XBXC-24D is a high-quality electromechanical relay designed for a wide range of applications. With a coil voltage of 24VDC and a coil resistance of 650Ohm, this relay delivers reliable and efficient performance.The DPDT (Double Pole Double Throw) configuration of this relay allows for versatile switching capabilities, making it suitable for both power and signal transfer applications. With a current rating of 15A, it can handle higher loads safely and effectively.This relay is compact and easy to install, with dimensions of 27.9x21x42.9mm. It comes with a socket, making it convenient for mounting and connection. The high-quality construction and reliable performance of this relay make it an excellent choice for various industrial and commercial applications.Whether used in control panels, automation systems, or other electrical devices, the Magnecraft / Schneider Electric 782XBXC-24D relay provides reliable and precise switching capabilities to ensure optimal performance.

Search Keywords: 782XBXC24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXC-24D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
15 A
Mounting:
Socket
Termination Style:
0.187Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
650 Ohm

IN STOCK: 0

On Order: 1,148   can ship 12/22/25
On Order: 750   can ship 4/8/26

Minimum Order: 10

Multiple: 10

Factory Lead-Time 32 Weeks
