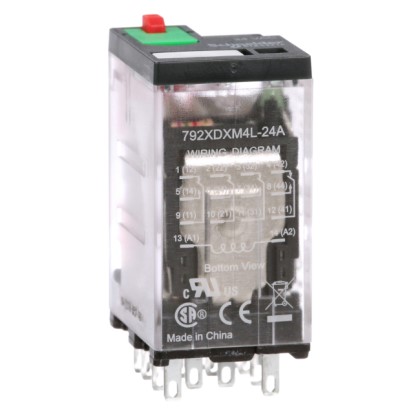

792XDXM4L-24A by schneider electric-legacy relays

792XDXM4L-24A

Schneider Electric-Legacy Relays

Power relay - SE Relays - 4PDT - 6A - 24 VAC - cover with locking push button and LED ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part 792XDXM4L-24A is a versatile miniature control relay designed for various industrial applications. With a 4PDT configuration, it allows for multiple poles and throws, providing excellent flexibility in controlling circuits. This relay has a maximum current rating of 6A, making it suitable for handling moderate loads. The coil is designed to operate on a 24VAC power supply. Additionally, this relay comes with a full-feature cover that provides protection and helps maintain the integrity of the electrical connections. Overall, the 792XDXM4L-24A is a reliable and efficient control relay, making it an ideal choice for industrial automation systems.

Search Keywords: 792XDXM4L24A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
792XDXM4L-24A
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
4PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 55 °C
Coil Resistance:
180 Ohm

IN STOCK: 80

Ships today, if you order in

Minimum Order: 10

Multiple: 10

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
10
$19.663
30
$19.374
50
$19.282
100
$15.213
250
$15.007
500
$14.647
1,000 +
$14.575
Suppliers Standard Package
Log in for special pricing
Click for Quote
Older Equivalent
782XDX2M4L-24A
782XDX2M4L-24A
VIEW PRODUCT
