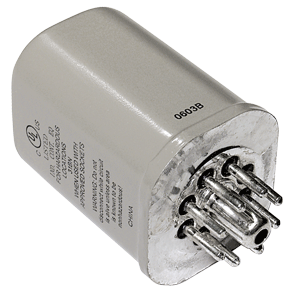

KR-11AGE-120 by schneider electric-legacy relays
Image is representational - see mfr. specs

KR-11AGE-120

Schneider Electric-Legacy Relays

Electromechanical Relay 110/120VAC 9.1KOhm 12A DPDT (38.6x34x52.07)mm Socket General Purpose Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric 750XBXH-120A is a versatile and reliable electromechanical relay designed for general purpose applications. It operates on a voltage range of 110/120VAC and offers a high resistance of 9.1KOhm. With a double-pole, double-throw (DPDT) configuration, this relay is capable of handling a current of up to 12A. The compact dimensions of 38.6x34x52.07mm make it suitable for installation in tight spaces. Additionally, the relay comes with a socket for easy mounting and connection. With its high-quality construction and exceptional performance, the 750XBXH-120A is an ideal choice for various industrial and commercial applications.

Search Keywords: KR11AGE120

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
KR-11AGE-120
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 55 °C
Coil Resistance:
9.1 KOhm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 170

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$113.52
5
$111.30
10
$106.40
20
$105.86
50
$105.34
100 +
$104.81
Log in for special pricing Click for Quote Price Match Request

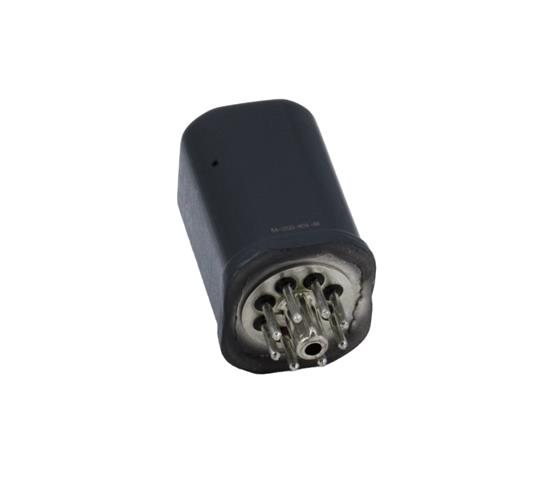

RECOMMENDED REPLACEMENT
750XBXH-120A
750XBXH-120A
VIEW PRODUCT
