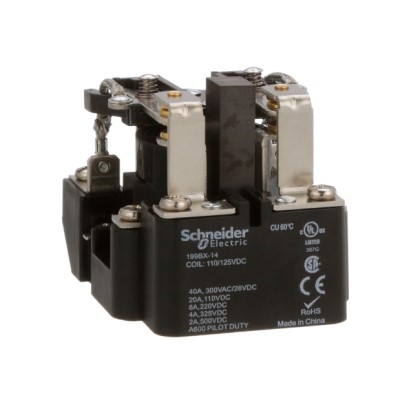

W199BX-14 by schneider electric-legacy relays

W199BX-14

Schneider Electric-Legacy Relays

Electromechanical Relay 110VDC 6KOhm 40A DPDT (63.5x79.2x64.26)mm Power Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft W199BX-14 is an electromechanical relay designed for high-performance applications. With a voltage rating of 110VDC, this power relay offers reliable and efficient switching capabilities. Its double pole double throw (DPDT) configuration allows for versatile control of electrical circuits. Measuring at 63.5x79.2x64.26 mm, this compact relay can fit into various installations. Its impressive 40A current rating ensures optimal power handling. Suitable for industrial and commercial use, the Magnecraft W199BX-14 is a dependable choice for demanding relay applications.

Search Keywords: W199BX14

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199BX-14
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
110 V
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C

IN STOCK: 0

On Order: 70   can ship 3/2/26
On Order: 100   can ship 4/9/26

Factory Lead-Time 21 Weeks

Price (CAD)

Qty
Unit Price
1
$226.142
5
$159.639
10
$136.883
25
$129.670
50
$129.028
100
$128.384
250 +
$127.742
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Accessories

50-1289-1

Enclosure Metal Universal Mount
