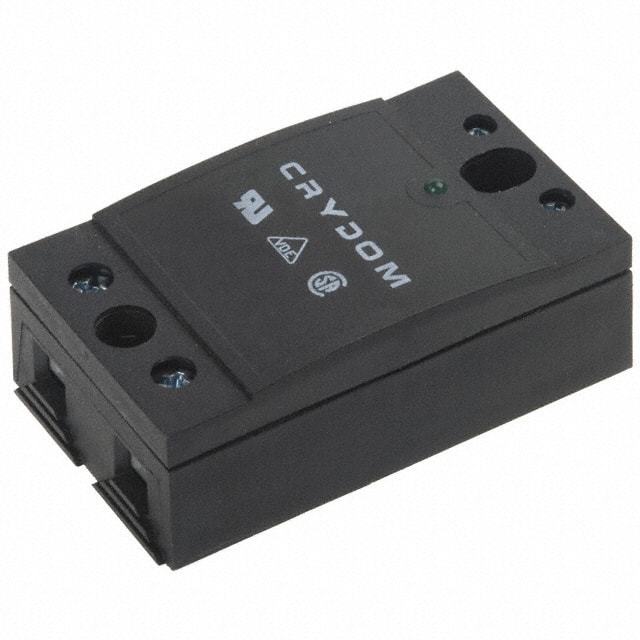

CMA2475
Sensata / CrydomSolid State Relay - 90-140 VAC Control - 75 A Max Load - 24-280 VAC Operating - Zero cross Turn-on - LED Input Status Indicator - Panel Mount.
RoHS Compliant
EACH Packaging
Discontinued & Replaced
DESCRIPTION
The CMA2475 solid state relay has standard box-clamp connections and IP20 touch-safe housing. Dimensions of this relay are: 3.0" (76.2mm) x 1.75" (44.5mm) x 1.15" (29.2mm).
Search Keywords: CMA2475
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CMA2475
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280 V
Maximum Output Current:
75 A
Output Device:
SCR
Input Type:
AC
Input Voltage:
140(RMS) V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
44.5 x 76.2 x 29.2 mm
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 10
Can Ship immediately
Price (CAD)
Qty
Unit Price
1
$558.586
3
$516.836
5
$494.575
10
$487.156
15
+
$474.086
