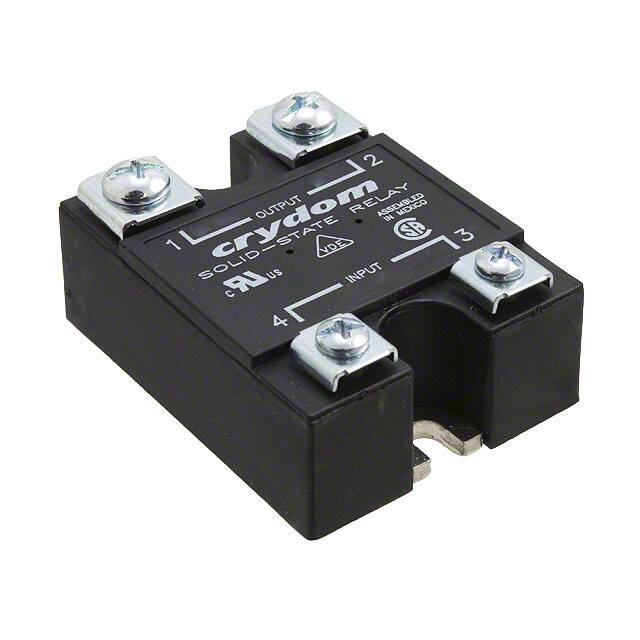

D06D100 by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

D06D100

Solid State Relay - 3.5-32 VDC Control - 100 A Max Load - 60 VDC Operating Voltage - Screws And Clamps Termination - Panel Mount.

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The D06D100 solid state relay has improved SEMS screw and washer. Redesigned housing with anti-rotation barriers. Dimensions of this relay are: 1.75" (44.5mm) x 2.25" (57.3mm) x 0.89" (22.6mm).

Search Keywords: D06D100

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D06D100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410060
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
60 V
Maximum Output Current:
100 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 22.9 mm

IN STOCK: 328

Ships today, if you order in

On Order: 140   can ship 9/7/26

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
1
$163.73
5
$157.19
10
$151.77
20
$147.71
50
$145.75
100 +
$145.38
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
