104549-6 by te connectivity / amp brand

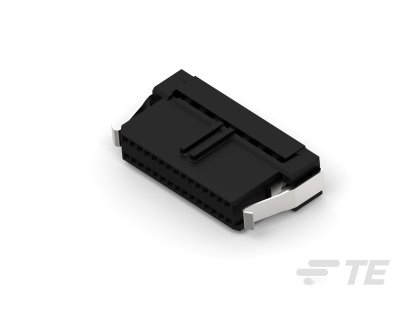

Image is representational - see mfr. specs

104549-6

TE Connectivity / AMP Brand

40 SYS50 SURFMNT HDR DRST SHRD ...

Datasheet
RoHS Non-Compliant
Tube Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

104549-6 is a fine-pitch SMT stacking connector designed for parallel board-to-board applications with 40 positions and 0.050 inch (1.27 mm) center spacing. The connector features a double-row vertical configuration with dimensions of 1.130 inches (28.70 mm) in length and 0.950 inches (24.13 mm) in width, providing compact interconnection between stacked PCBs. The housing is constructed from glass-filled black thermoplastic rated 54V-0, with phosphor bronze contacts plated with 0.0076 inches of gold in the mating area and 0.0038 inches of tin-lead on the solder tail, ensuring reliable electrical performance and durability. The connector is ideal for applications requiring high-density interconnections in space-constrained environments such as telecommunications equipment, data processing systems, and industrial control modules.

Product Highlights:

  • Header Assembly
  • Number of Positions = 40
  • Number of Rows = Dual
  • Shrouded
  • Vertical Mount Angle

Search Keywords: 1045496

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
104549-6
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
16
Package Type:
Tube
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Surface Mount
Pitch:
1.27 mm
Number of Contacts:
40
Maximum Voltage Rating:
30 VAC
Maximum Current Rating:
N/A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 304

Can Ship immediately

MOQ for In Stock Qty: 16

MOQ for out of Stock Qty: 16

Multiple: 16

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
16
$29.30
32
$29.23
64
$29.16
112
$29.08
144
$29.00
288
$15.36
432
$10.82
576 +
$10.59
Suppliers Standard Package
