1-1564514-1 by te connectivity / amp brand
Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1-1564514-1

10POS, MIXED,REC HSG,ASSY ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Certificate of Compliance

DESCRIPTION

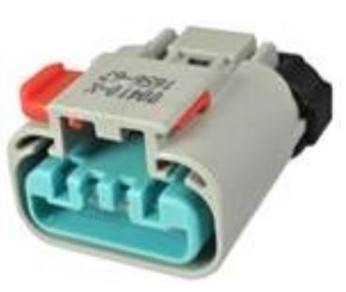

1-1564514-1 is a receipt housing connector for the HDSCS 10-way electrical connector system designed for industrial and commercial transportation applications. The connector accommodates 6 contacts of size 1.5K and 4 contacts of size 2.8, providing flexible contact configuration for diverse wiring requirements. It features group D keying with multiple key options (1 key in black, 2 key in gray, 3 key in green, and 4 key in blue) to ensure proper mating and prevent incorrect connections. The housing includes integrated wedge/TPA (included with each unit) for secure contact retention and environmental sealing. This connector is commonly used in automotive, industrial control systems, and transportation equipment where reliable, sealed electrical connections are essential for harsh operating environments.

Search Keywords: 115645141

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-1564514-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
300
Package Type:
BOX
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Termination Method:
Crimp
Number of Contacts:
10
Maximum Voltage Rating:
42 VDC
Maximum Current Rating:
N/A
Operating Temperature:
-40 to 140 °C

IN STOCK: 830

Ships today, if you order in

Minimum Order Quantity: 10

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
10
$3.44
50
$2.29
300
$2.21
600
$2.20
1,200
$2.04
2,700
$2.01
5,100
$2.00
7,500 +
$1.99
Supplier's Standard Package
