1-1633860-8

Name: 1-1633860-8
Brand: Te Connectivity Amp Brand
SKU: 45592233
Price: 193.44 USD
Availability: BackOrder

CRIMPER, WIRE F ...

View Datasheet

RoHS Non-Compliant

BAG Packaging

Certificate of Compliance

DESCRIPTION

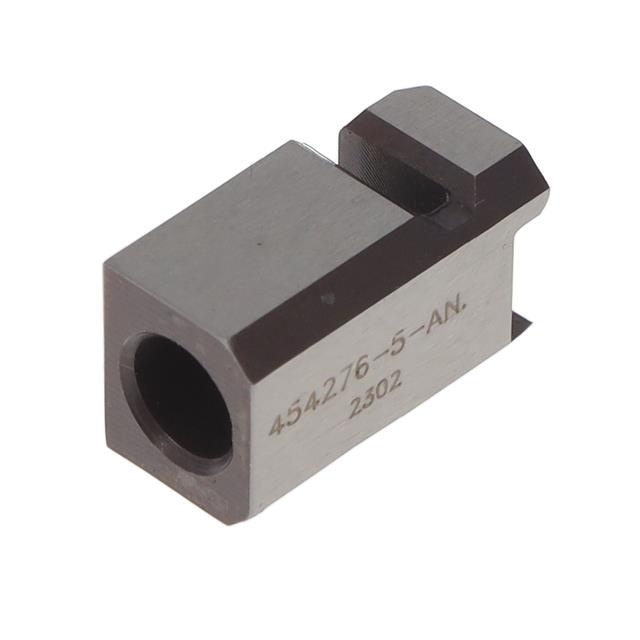

1-1633860-8 is a crimp tooling component used in wire termination processes to achieve proper electrical and mechanical connections. The tooling is designed to control crimp height (CH) and crimp width (CW) to maintain an optimal Area Index (AI) of approximately 80%, which represents the ratio of total crimped area to total uncrimped area (wire plus barrel). Critical dimensional parameters include a nominal crimp height of 0.073 inches, crimp width of 0.110 inches, crimper leg taper of 3.0 degrees, and anvil width of 0.109 inches, with a nominal anvil-to-crimper clearance of 0.005 inches. The tooling components, particularly the wire crimper and anvil, are manufactured from materials selected to withstand high loads, moderate shock, and the shear loading generated during the plastic deformation and extrusion of the terminal barrel. This precision tooling is essential for maintaining consistent crimp quality, pull test values, and production throughput in high-volume wire termination operations.

Product Highlights:

Potential Applications:

Search Keywords: 116338608

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

1-1633860-8

Unit of Measure:

Per Each

RoHS:

HTS:

8207306062

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
