1-1904007-1 by te connectivity / amp brand

1-1904007-1

TE Connectivity / AMP Brand

V23234B1001X004-EV-144 ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

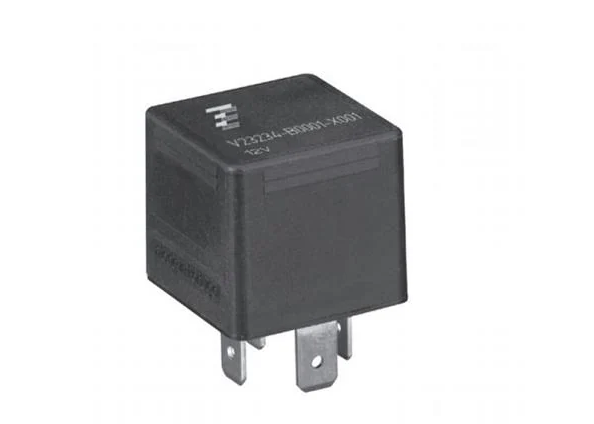

The V23234B1001X004-EV-144 from TE Connectivity / P&B Brand is a 30A, 12VDC, mini ISO power relay. It's contacts has a current rating of 30A and a voltage rating of 12VDC. Contact features an SPST-NO arrangement, Silver-based material, and plug-in, quick connect terminal type. Coil's magnetic systems has a voltage rating of 12VDC and a coil suppresion resistance of 680 Ohms. The product has a dimension of 22 mm (0.866 in)L x 28.5 mm (1.122 in) x 16 mm (0.63 in) , and weighs 35 g (1.2 oz). Environmental category of protection is RT I – dustproof and IP54 degree of protection and ambient temperature of -40 to 125°C. V23234B1001X004-EV-144 typical applications include cross carline up to 35A. For example: rear window defogger, battery disconnection, power distribution (clamp 15).

Search Keywords: 119040071

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-1904007-1
RoHS:
Yes
HTS:
8536410060
COO:
PT
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Contact Form:
SPST-NO (1 Form A)
Coil Resistance:
85 Ohm
Coil Suppression:
680 Ohm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 876

Ships today, if you order in

Minimum Order: 4

Price (CAD)

Qty
Unit Price
4
$12.224
10
$12.163
25
$8.629
50
$8.586
100
$7.973
200
$7.804
500 +
$7.642
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT
V23234B1001X004-EV-144
V23234B1001X004-EV-144
VIEW PRODUCT
