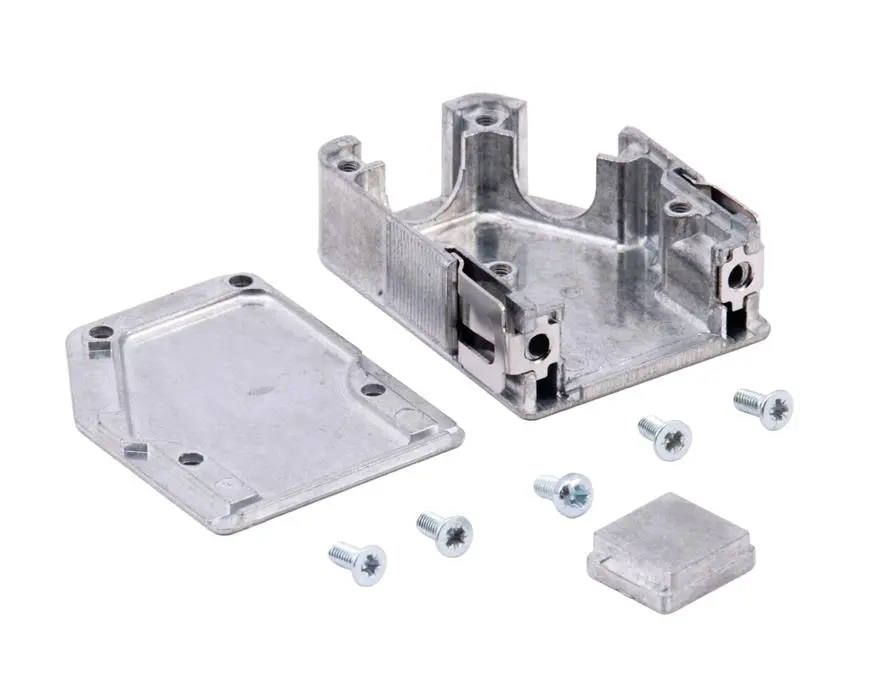

Image is representational - see mfr. specs

1445022-7

TE Connectivity / AMP Brand

MICRO MNL RFECEPT HSG SINGLE R ...

Datasheet

RoHS Compliant

Bag Packaging

Certificate of Compliance Guarantee

DESCRIPTION

1445022-7 is a single-row receptacle connector housing for the Micro MATE-N-LOK 3mm connector system designed for wire-to-board connections. This receptacle housing accommodates 2 to 12 circuits and features a 3mm (0.118 inch) centerline spacing with current ratings up to 5 Amps maximum per line. The connector is compatible with crimp and snap-in pin contacts that terminate 20-30 AWG wire with insulation diameters ranging from 0.89 mm to 1.52 mm, and supports both single-row header configurations in vertical and right-angle orientations. The housing is available in through-hole and surface mount (SMT) configurations with multiple board mount options, including SMT hold-down, through-hole metal, and plastic hold-down features. This connector system is infrared (IR) reflow process compatible, making it suitable for automated assembly in applications requiring reliable wire-to-board interconnections in compact spaces.

Product Highlights:

Housing
Housing Type = Receptacle
Number of Positions = 7
Number of Rows = Single
3.00 mm Centerline

Potential Applications:

Search Keywords: 14450227

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

1445022-7

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
