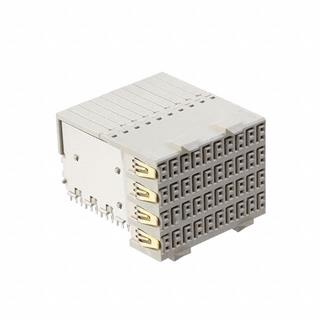

1469001-1 by te connectivity / amp brand

1469001-1

TE Connectivity / AMP Brand

HM-ZD 4PR RECP 80P ...

Datasheet
RoHS Non-Compliant
Tube Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / AMP Brand part 1469001-1 is a high-performance HM-ZD (High-Speed Module Z-PACK) connector, featuring a 4-pair receptacle with 80 positions. This robust connector is designed for demanding applications requiring exceptional signal integrity and high-speed data transmission. It is ideally suited for use in telecommunications, data communications, and networking equipment. The HM-ZD connector ensures reliable, high-density interconnect solutions, making it perfect for modern electronic systems that require compact yet powerful connectivity. Its advanced design supports seamless integration into a variety of system configurations, offering flexibility and durability to meet the needs of cutting-edge technology applications.

Product Highlights:

  • Receptacle
  • Connector Type = 10 Column
  • Interface Type = HM-Zd
  • Contact Type = ACTION PIN Post
  • Feedthrough Post Length = 2.20 mm

Search Keywords: 14690011

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1469001-1
RoHS:
No
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Tube
Type:
Advanced TCA
Gender:
RCP
Body Orientation:
Right Angle
Mounting:
Through Hole
Pitch:
2.5 mm
Number of Contacts:
80
Termination Method:
PRESS FIT
Operating Temperature:
-65 to 105 °C
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 45

Ships today, if you order in

MOQ for out of Stock Qty: 900

Factory Lead-Time 14 Weeks

Price (CAD)

Qty
Unit Price
1
$30.703
250
$26.691
500
$26.431
900
$26.170
1,800
$25.910
2,700
$25.650
3,600 +
$25.405
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

1583224-1

TOOL,REMOVAL,HMZD RECEPT. HOUS

1583248-1

TOOL,REMOVAL,HMZD CHICLET,4 PR

1469002-1

HM-ZD 4PR HDR 80P 5.2MM

1469074-1

HM-ZD 4PR HDR ASSY 1.8MM

6469002-1

Connector, Z-PACK Series, 80 Contacts, 2 mm, Header, Press Fit, 8 Rows

1469079-1

HMZD HDR ASSY 4 PR SELECT LOAD

6469002-2

HM-ZD 4PR HDR 80P 3.7MM

6469048-1

Hard Metric Connector - Header - 80Signal/40Ground Contacts.

6469056-1

HMZD 4PR. HDR ASSY.,25MM MODUL

6469074-1

HM-ZD 4PR HDR ASSY 1.8MM

6469292-1

HM ZD 4 PR HEADER, SEQUENCED

6469046-1

HMZD HRD ASSY, 4 PAIR

6469079-1

HMZD HDR ASSY 4 PR SELECT LOAD

Show 11 More
