1-480424-0 by te connectivity / amp brand

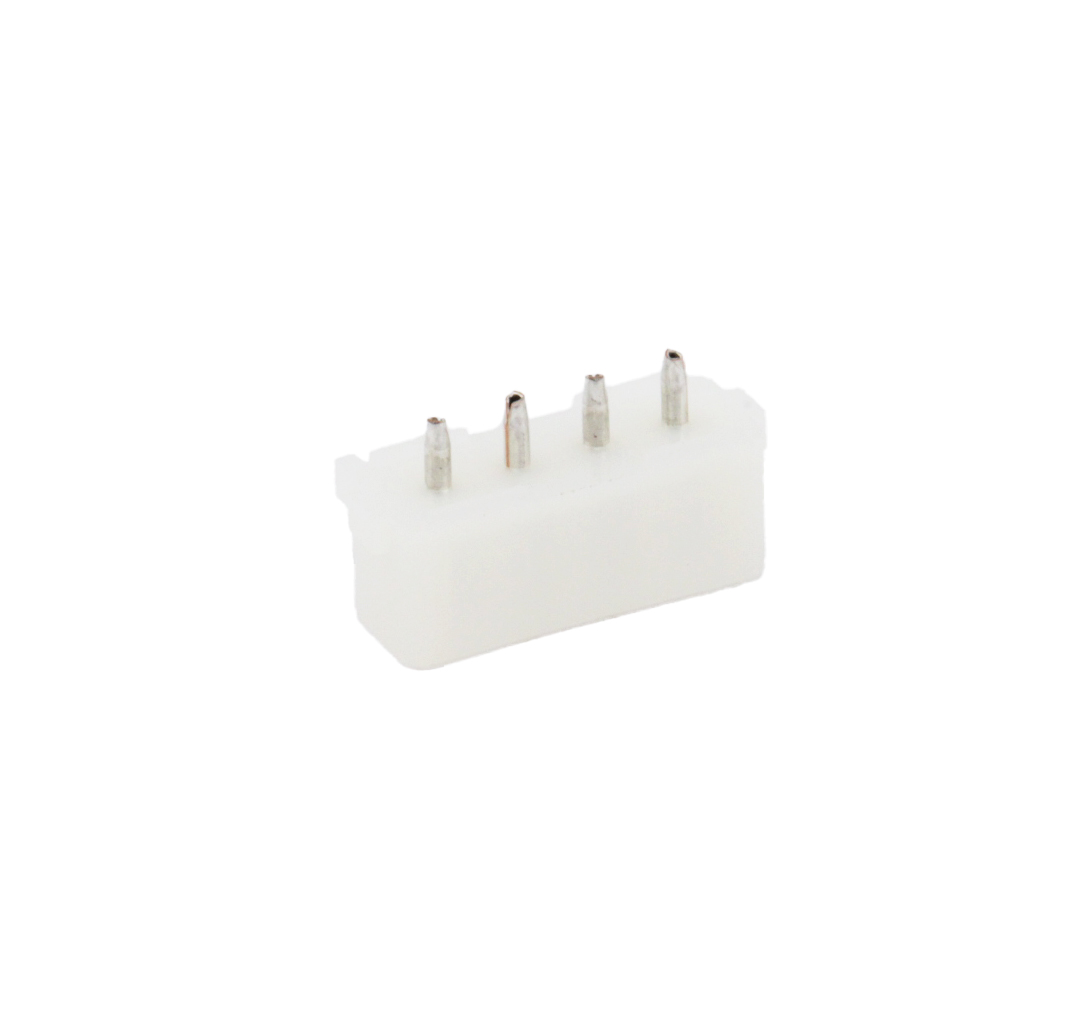

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1-480424-0

04P CMNL PLUG HSG F/H NATL ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The TE Connectivity / AMP Brand part 1-480424-0 is a 4-position plug housing for use with the CMNL connector system. This housing is designed with a natural color and features a compact size, making it suitable for various applications. It offers easy and reliable wire-to-board connections, ensuring efficient electrical connectivity.

Product Highlights:

  • Housing
  • Contact Diameter = 2.13 mm
  • Number of Circuits = 4
  • 5.08 mm Centerline, Matrix
  • In-Line Contact Layout

Search Keywords: 14804240

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-480424-0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
BAG
Type:
Wire to Board
Body Orientation:
Straight
Gender:
PL
Mounting:
Cable Mount
Pitch:
5.08 mm
Number of Contacts:
4
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
13/Contact A
Termination Method:
Solder
Operating Temperature:
-55 to 105 °C

IN STOCK: 3,732

Can Ship immediately

On Order: 8,000   can ship 8/24/26

Minimum Order Quantity: 100

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
1
$0.4427
100
$0.4024
500
$0.3515
1,000
$0.3014
3,000
$0.2863
5,000
$0.2844
8,000
$0.2837
15,000
$0.2829
25,000 +
$0.2822
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
