1-534237-4 by te connectivity / amp brand

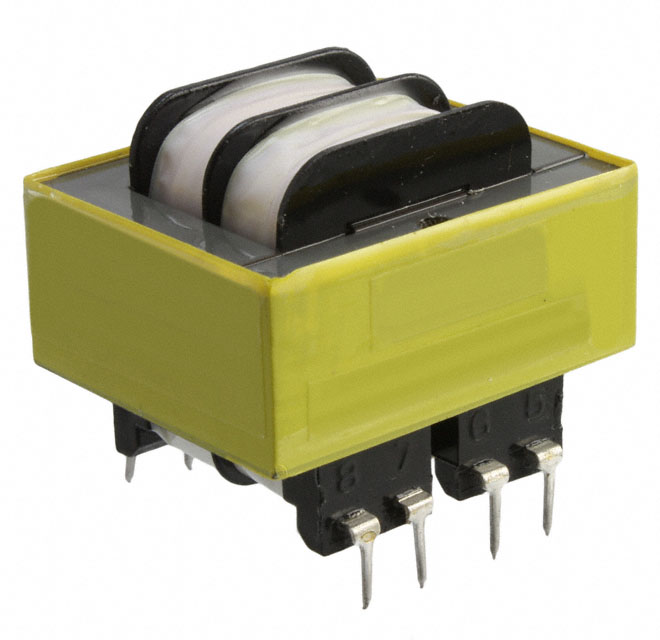

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1-534237-4

16 MODII VRT SR CE 100/115 ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
TUBE Packaging
Accessories
Certificate of Compliance

DESCRIPTION

1-534237-4 is a single row unshrouded breakaway header from the AMPMODU interconnection system, designed for reliable board-to-board connections. This 16-position header features a 0.100 inch (2.54 mm) centerline spacing with dimension A of 1.600 inches (40.64 mm) and dimension B of 1.500 inches (38.10 mm). The header utilizes 0.025 inch (0.64 mm) square posts with a post diameter of 0.035 ± 0.003 inches (0.89 ± 0.08 mm). It is part of the Plating A contact plating variant in the 534237 series. These headers are commonly used in electronic equipment for PCB interconnections where breakaway functionality and standard pitch spacing are required.

Product Highlights:

  • Receptacle
  • Mod II
  • Number of Positions = 16
  • Number of Rows = Single
  • Standard Profile

Search Keywords: 15342374

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-534237-4
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
14
Package Type:
TUBE
Type:
Socket Strip
Body Orientation:
Straight
Gender:
SKT
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
16
Maximum Voltage Rating:
N/A
Maximum Current Rating:
2/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 13,673

Can Ship immediately

Minimum Order Quantity: 14

Multiple: 14

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
14
$3.32
56
$3.18
112
$3.12
252
$3.04
504
$2.98
1,008
$2.91
2,506 +
$2.83
Supplier's Standard Package
