1658683-1 by te connectivity / amp brand

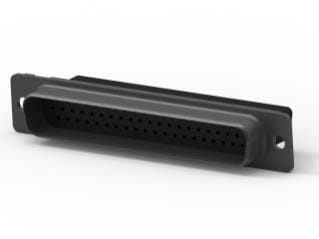

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1658683-1

D Sub Connector Housing - 44 Ways - High Density D Sub - 3 - AMPLIMITE HDP-22 Series - Receptacle. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1658683-1 is a 44-way 3-row Crimp Snap-in Receptacle with thermoplastic insert. This Amplimite HDP-22 series connector comes with tin-plated steel shell and nylon GF housing. It is intermateable with any size 22 Subminiature D connector dimensionally complying with MIL-C-24308 and capable of using numerous standard HD-20 cable clamps and mating hardware.

Product Highlights:

  • Connector
  • Product Series = HDP-22 (Crimp Snap)
  • Number of Positions = 44
  • Receptacle
  • Without Contacts

Search Keywords: 16586831

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1658683-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
400
Package Type:
BOX
Type:
High Density D-Sub
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
SKT
Termination Method:
Crimp
Shell Size:
3
Number of Contacts:
44
Contact Plating:
Gold over Nickel
Operating Temperature:
-55 to 105 °C

IN STOCK: 0

On Order: 1,600   can ship 2/22/27

Minimum Order Quantity: 5

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
5
$6.93
25
$6.63
50
$6.51
100
$6.40
400
$6.30
800
$6.24
1,200 +
$6.22
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

1658677-1

HDP-22,OVRMLD,PLUG KIT,SIZE 3,

1658672-1

HDP-22,PLUG,SIZE 3,44 POSN

1658680-1

D Sub Connector Housing - 44 Positions - High Density D Sub - DB - AMPLIMITE HDP-22 Series ...

Show 1 More
