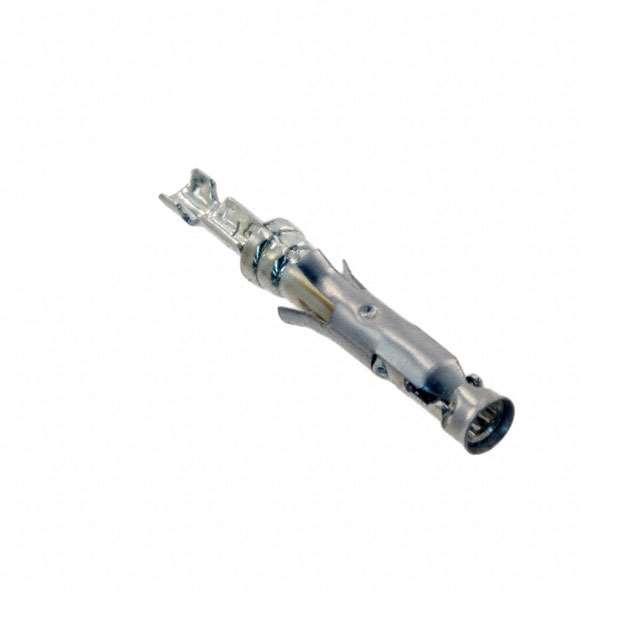

1-66109-5 by te connectivity / amp brand
Image is representational - see mfr. specs

1-66109-5

TE Connectivity / AMP Brand

III+ SKT,26-24,TIN-LEAD,SMPACK ...

Datasheet
RoHS Non-Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1-66109-5 is a socket contact for Metrimate pin and socket connectors manufactured by TE Connectivity/AMP. This contact is engineered for wire-to-board and wire-to-wire applications, accommodating 18–14 AWG wire sizes (0.8–2.0 mm²) with insulation diameters ranging from 0.8–2.0 mm. The contact features a brass body with stainless steel retention spring, available in selective gold/nickel or bright tin-lead finish, and is designed to mate with corresponding pin contacts in square grid, drawer, and in-line connector configurations. Operating within a temperature range of -55°C to +130°C, the contact maintains an insulation resistance of 5000 MO minimum and supports a dielectric strength of 2000 Vrms at sea level. The connector system is rated for 600 VAC/VDC (UL/CSA) and 440 V (IEC), making it suitable for industrial control panels, rack-and-panel systems, and general-purpose signal distribution in electronic equipment.

Product Highlights:

  • Socket
  • Tin-Lead over Nickel Contact Mating Area Plating
  • Wire Range = 0.12-0.24² [26-24] mm [AWG]
  • Insulation Diameter = .89 - 1.40 mm
  • Brass Contact Material

Search Keywords: 1661095

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-66109-5
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536904000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Contact Type:
Power
Gender:
SKT
Contact Size:
16
Wire Size:
N/A
Contact Material:
Brass
Contact Plating:
Tin-Lead over Nickel
Maximum Current Rating:
N/A
Termination Method:
Crimp
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 7

Can Ship immediately

Buy all 7 in-stock or the regular minimum order quantity of 25

Stock lot only: 7

MOQ for In Stock Qty: 25

MOQ for out of Stock Qty: 250

Factory Lead-Time 19 Weeks
