171630-1 by te connectivity / amp brand

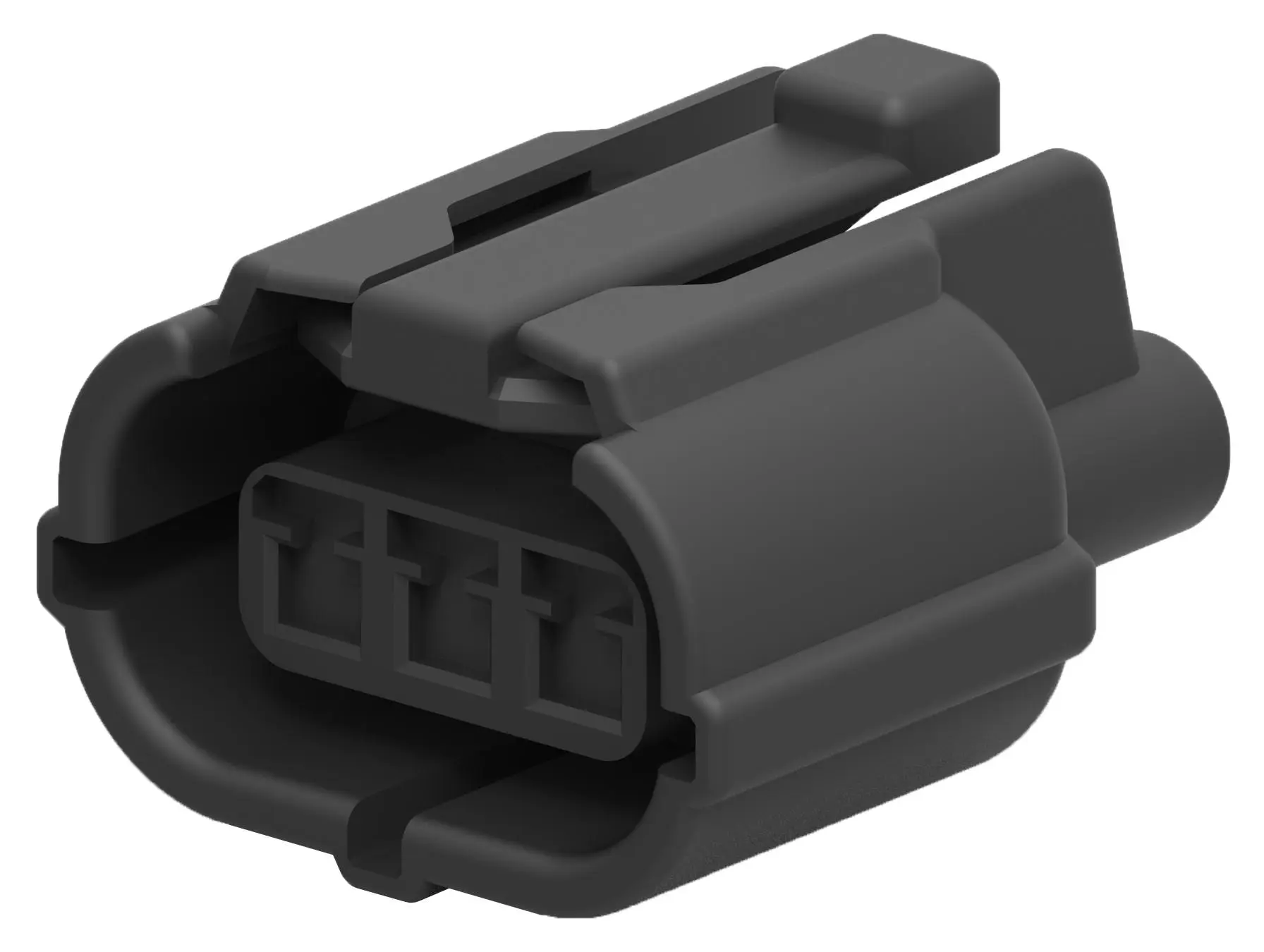

Image is representational - see mfr. specs

171630-1

TE Connectivity / AMP Brand

E-J MK-2 070 REC CONT ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

171630-1 is a socket contact for the Econoseal J Series sealed connector system, engineered for reliable wire-to-board connections in automotive environments. The contact is manufactured from brass with pre-tin plating and accommodates wire sizes from 0.2 to 0.5 mm² (AWG 24–20), with an insulation diameter range of 1.4–2.4 mm. It is designed to work with single wire seals (part number 178210-1, style B) and cavity plugs, providing waterproof protection against moisture, dust, corrosive gases, and liquids in extreme automotive conditions. This contact is commonly used in sensor wiring within motor hoods and electrical control systems operating under unfavorable climatic conditions, where sealed housing protection is essential to prevent premature contact degradation.

Product Highlights:

  • Contact
  • Wire Range = 0.20-0.60² [24-20] mm [AWG]
  • Contact Type = Receptacle
  • Wire Insulation Diameter = 1.40 - 2.41 mm
  • Brass Contact Material

Search Keywords: 1716301

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
171630-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
JP
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
6000
Package Type:
Reel
Contact Type:
Power
Gender:
SKT
Contact Size:
N/A
Wire Size:
20-24 AWG
Contact Material:
Brass
Contact Plating:
Pre-Tin
Maximum Current Rating:
N/A
Termination Method:
Crimp
  Different packaging options available.  See Alternatives
  Possible Replacement options available.  See Alternatives

IN STOCK: 24,000

Can Ship immediately

Minimum Order Quantity: 6000

Multiple: 6000

Factory Lead-Time 18 Weeks
