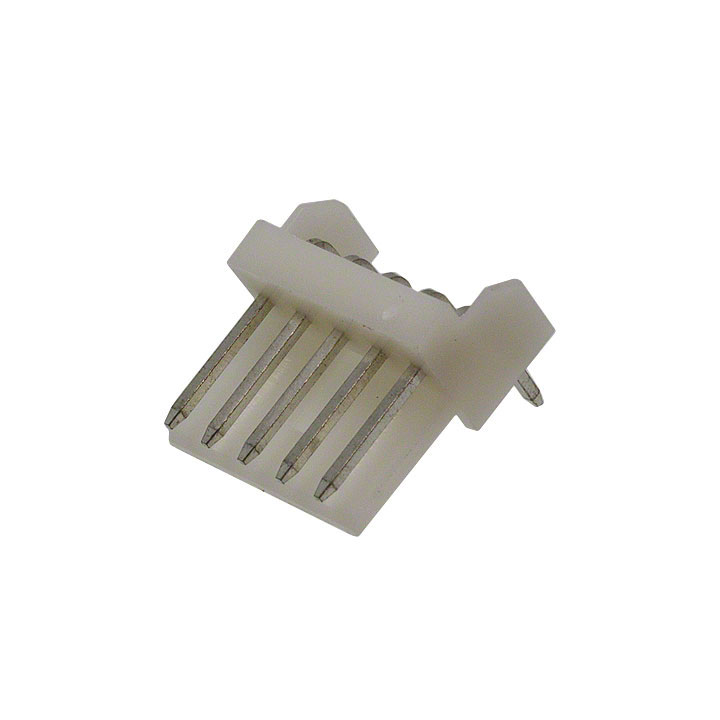

Image is representational - see mfr. specs

171822-5

TE Connectivity / AMP Brand

EIS REC. HSG 5P-NATURAL ...

Datasheet

RoHS Compliant

Bag Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 171822-5 is a standard crimp receptacle connector from TE Connectivity's Economy Interconnection Series (EIS), designed for high-density wiring connections in wire-to-board and wire-to-wire applications. This connector features a locking mechanism and polarization features to ensure proper mating, with positions ranging from 2 to 12 and a 2.5mm centerline pitch. It supports crimp termination with wire sizes from 30 to 20 AWG, operates at 250V with current ratings up to 5A (20 AWG), and maintains reliable performance across an operating temperature range of -20°C to 95°C. The connector includes guides for correct contact alignment and is available with gold-plated configurations, making it suitable for industrial machinery, factory automation, commercial equipment, household appliances, and consumer electronics applications.

Product Highlights:

Housing
Mating Type = Receptacle
2.50 mm Centerline
Number of Positions = 5
Terminate To Wire

Potential Applications:

Search Keywords: 1718225

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

171822-5

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
