1761681-5 by te connectivity / amp brand
Image is representational - see mfr. specs

1761681-5

TE Connectivity / AMP Brand

The 1761681-5 is a 50-position, vertical, low-profile header assembly with a 2.54 mm pitch for IDC applications. ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1761681-5 is a 50-position, vertical, low-profile IDC (Insulation-Displacement Connector) header assembly. It is designed with a standard 2.54 mm pitch and features a high-temperature PCT housing that is UL94V-0 rated and black in color. The phosphor bronze posts ensure reliable electrical performance, with gold plating on the mating area, tin plating on the solder end, and a nickel underplate over the entire post. This through-hole header is ideal for creating high-density, reliable connections in space-constrained applications such as industrial controls, telecommunications equipment, and consumer electronics.

Product Highlights:

  • Connector Type = Pin Headers
  • Low Profile
  • Number of Positions = 14
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 17616815

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1761681-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694051
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Tray
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
14
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

IN STOCK: 364

Can Ship immediately

On Order: 2,000   can ship 5/4/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
100
$1.13
300
$1.11
500
$1.09
1,000
$1.08
2,500 +
$1.07
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

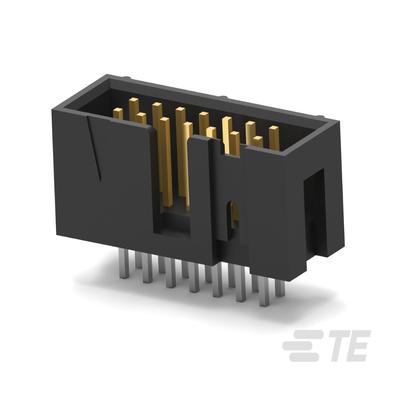

Older Equivalent
636-1427
636-1427
VIEW PRODUCT
