1-770253-0 by te connectivity / amp brand

1-770253-0

TE Connectivity / AMP Brand

Socket Contact - MATE-N-LOK - 18 to 24 AWG - 600 VAC - Non-Insulated - Straight - Crimp Termination. ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / AMP Brand part 1-770253-0 is a highly reliable and durable connector socket. It is part of the UMNLII series, offering excellent performance and versatility. This socket features a Point-to-Point (PTP) contact configuration, ensuring secure and efficient connections. The LP LF 24-18 designation indicates that it is designed for low-profile applications, with a wire size range of 24-18 AWG. Whether used in industrial, automotive, or commercial applications, this connector socket provides a robust solution for your electrical connections.

Product Highlights:

  • Contact
  • Universal MATE-N-LOK II
  • Not CompactPCI
  • Contact Type = Socket
  • Wire Range = 0.20-0.80² [24-18] mm [AWG]

Search Keywords: 17702530

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-770253-0
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Bag
Contact Type:
Power
Gender:
Pin
Contact Size:
N/A
Wire Size:
14-20 AWG
Contact Material:
Brass
Contact Plating:
Pre-Tin
Maximum Current Rating:
19 A
Termination Method:
Crimp

IN STOCK: 0

On Order: 9,500   can ship 7/22/26

Minimum Order: 25

Factory Lead-Time 46 Weeks

Price (USD)

Qty
Unit Price
25
$1.916
100
$1.710
250
$1.597
500
$1.504
1,000
$1.380
3,000
$1.329
5,000
$1.318
8,000 +
$1.308
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Accessories

91510-1

CCII UNML UNML II PIN SKT 24-18 ASSY

90548-1

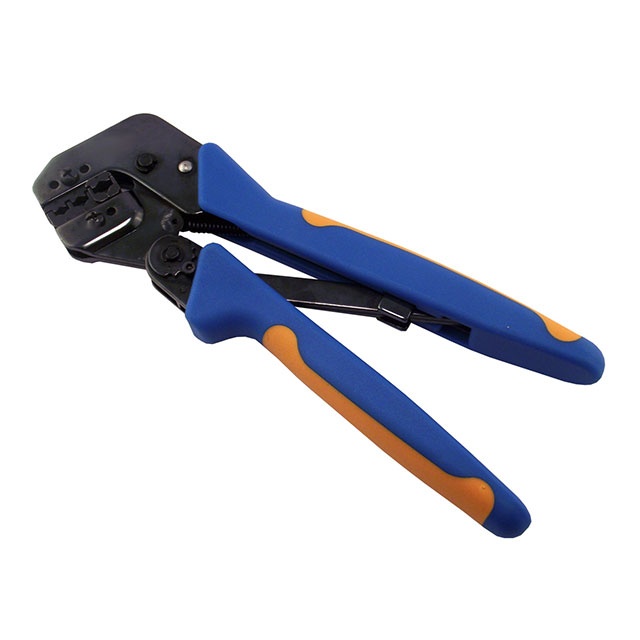

Crimp Tool - Ratchet - AMP Universal MATE-N-LOK Series 24 to 18 AWG Contacts - PRO-CRIMPER ...

90548-2

PROCRIMPER DIE ASSY UNIV MNL

Show 1 More
