1-794606-1 by te connectivity / amp brand

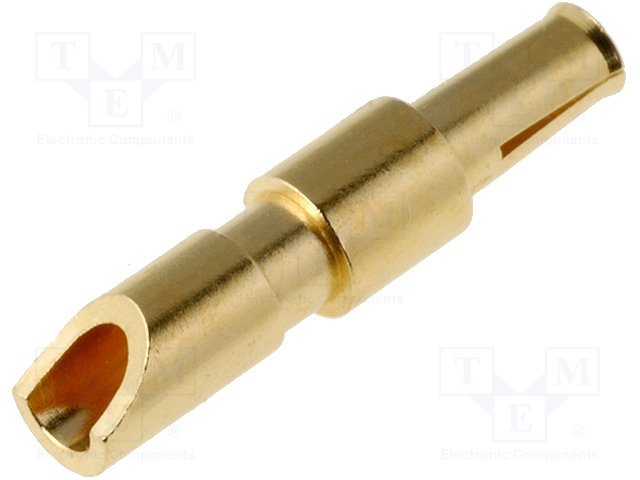

Image is representational - see mfr. specs

1-794606-1

TE Connectivity / AMP Brand

Contact - Micro MATE-N-LOK Series - Socket - Crimp - 20 AWG - Gold Plated Contacts. ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1-794606-1 is Micro MATE-N-LOK series low profile micro MATE-N-LOK Connector has a vertical height of less than 4.7mm, about 45% lower than other members of the product family. These soft-shell connectors include right-angle surface-mount headers and mating cable connectors. The line uses standard micro MATE-N-LOK contacts, with 24 to 20 wire range. The connector features positive latching to prevent unmating. The 94V-0-rated nylon housing is available in black or natural colours. Contacts are phosphor bronze with a choice of tin or gold plating. The connectors are rated up to 5A and 250V. This low-profile connector joins the proven micro MATE-N-LOK line of soft-shell connectors widely used in appliance, industrial machinery and home equipment. The low-profile version was created to meet the specific demands of the lighting industry, but applications are found in other industries, as well.

Product Highlights:

  • Contact
  • Contact Type = Receptacle
  • Wire Range = 0.20-0.60² [24-20] mm [AWG]
  • Gold (15) Contact Mating Area Plating
  • Strip

Search Keywords: 17946061

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-794606-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
15000
Package Type:
Reel
Contact Type:
Power
Gender:
Pin
Contact Size:
20
Wire Size:
20-24 AWG
Contact Material:
Brass
Contact Plating:
Gold
Maximum Current Rating:
5 A
Termination Method:
Crimp

IN STOCK: 0

On Order: 135,000   can ship 6/17/26
On Order: 55,000   can ship 7/15/26
On Order: 150,000   can ship 10/14/26

Minimum Order Quantity: 5000

Factory Lead-Time 26 Weeks

Price (USD)

Qty
Unit Price
5,000
$0.0586
7,500
$0.0581
15,000
$0.0569
30,000
$0.0568
60,000
$0.0565
105,000
$0.0564
150,000
$0.0563
255,000 +
$0.0561
Reel Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

91501-1

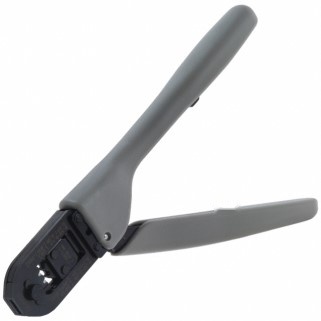

Hand Crimper Tool For Rectangular Contacts - 20 to 24 AWG - Ratchet - Side Entry.

91391-2

SDE COMM MICRO MNL DIE SET

843996-6

Extraction Tool for MICRO MATE-N-LOK

Show 1 More
