1-796644-2 by te connectivity / amp brand

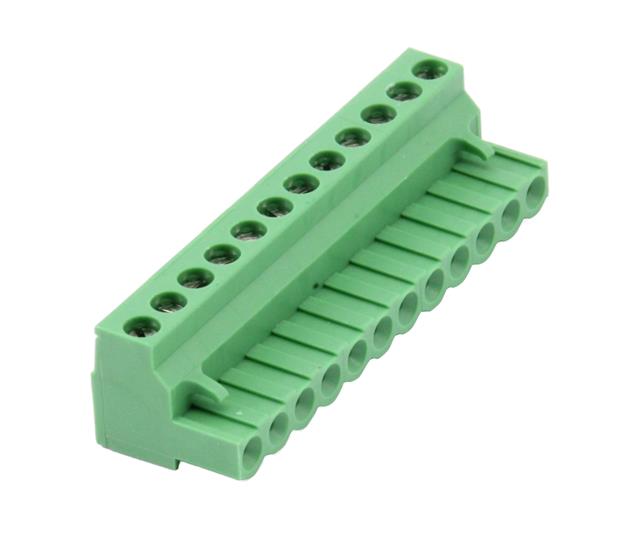

Image is representational - see mfr. specs

1-796644-2

TE Connectivity / AMP Brand

12POS 5.0MM CE R/A HDR,TRM BLK ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1-796644-2 is a Euro Style terminal block connector designed for PCB mounting applications. This connector is part of TE Connectivity's Euro Style terminal block family, which features various wire termination methods including rising cage clamp, wire protector, spring, IDC, and crimp snap options. The design supports both one-piece board mount terminal blocks and two-piece plug connectors with mating headers. These terminal blocks are stackable end-to-end without loss of centerline spacing and feature built-in interlocks for ease of assembly. Common applications include industrial controls and general electronic equipment where reliable wire-to-board connections are required.

Product Highlights:

  • Connector
  • Connector Type = Header
  • Shrouded
  • Housing Color = Green
  • Not Side Stackable

Search Keywords: 17966442

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-796644-2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
IT
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Type:
Shrouded Header
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
5 mm
Number of Contacts:
12
Maximum Voltage Rating:
300 VAC
Maximum Current Rating:
15/Contact A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 270

Can Ship immediately

On Order: 1,200   can ship 6/19/26

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 100

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
5
$7.21
25
$5.10
50
$4.68
100
$4.30
200
$4.26
300
$3.84
400 +
$3.69
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

1-796640-2

12 POS 5.0 MM R/A PLUG,TRM BLK

1-284040-2

TERMI-BLOK VERTICAL PLUG STACK

1-284046-2

TERMI-BLOK VERTICAL PLUG STACK

Show 1 More
