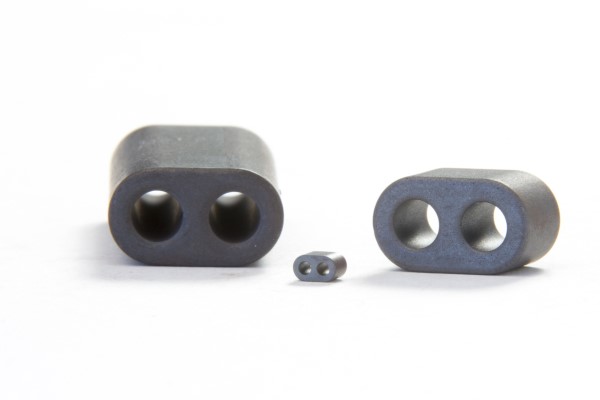

Image is representational - see mfr. specs

1-966144-0

TE Connectivity / AMP Brand

FER,WIRE,DBL,PL SLV,4.00/12,L12,GREY,LP ...

Datasheet

RoHS Compliant

Bag Packaging

Certificate of Compliance Guarantee

DESCRIPTION

1-966144-0 is a double wire ferrule with plastic sleeve designed for connecting two 4.00 mm² flexible conductors with screw or spring clamps. The ferrule features a copper sleeve with galvanic tin plating and a polypropylene plastic collar rated up to +120°C, manufactured according to DIN 46228 Part 4 specifications. Key dimensions include an overall length (A) of 23.0 mm, a width (B) of 12.0 mm, a sleeve thickness (C) of 3.70 mm, and a total height (D) of 8.8 mm with an internal dimension (E) of 4.9 mm. The product is supplied in strip form with a strip length of 14.0 mm and is packaged in quantities of 100 units. This ferrule is ideal for automotive powertrain systems, safety and security systems, and other applications requiring gas-tight, color-coded insulated connections that protect crimped connections from contact and corrosion.

Product Highlights:

Tubular End Sleeve
Wire Range = (2) 4.00² [(2) 11.5-11] mm [AWG]
Double Wire
Strip Length = 14.00 mm
Color = Gray

Potential Applications:

Search Keywords: 19661440

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

1-966144-0

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
