2-329456-1 by te connectivity / amp brand

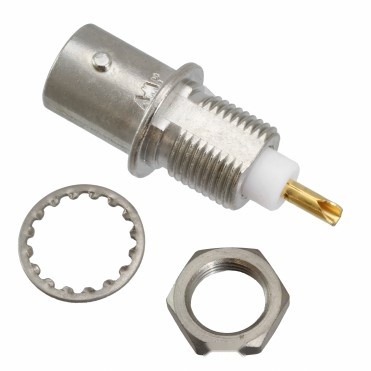

Image is representational - see mfr. specs

2-329456-1

TE Connectivity / AMP Brand

BNC BHD JACK KIT ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 2-329456-1 is a 50 Ohm BNC bulkhead jack connector designed for RF coaxial cable termination. This connector features a crimp termination style suitable for panel mounting applications with a maximum panel thickness of 3.18 mm (0.125 in). The bulkhead jack design allows for secure through-panel connections in RF systems. These BNC connectors are commonly used in telecommunications, test equipment, and instrumentation applications where reliable RF signal transmission is required.

Product Highlights:

  • Connector - RF
  • Jack
  • Housing Gender = Jack
  • Terminate To Coaxial Cable
  • Coaxial Cable Termination Type = Crimp

Search Keywords: 23294561

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
2-329456-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694010
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Carton
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 2.5 Hz to GHz
Gender:
RCP
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
-65 to 85 °C
Dimension:
33.66 x 17.46 mm

IN STOCK: 175

Ships today, if you order in

MOQ for In Stock Qty: 3

MOQ for out of Stock Qty: 3

Factory Lead-Time 36 Weeks

Price (USD)

Qty
Unit Price
3
$147.53
25
$147.16
50
$146.79
75
$146.42
150
$74.78
225
$50.90
300 +
$49.88
