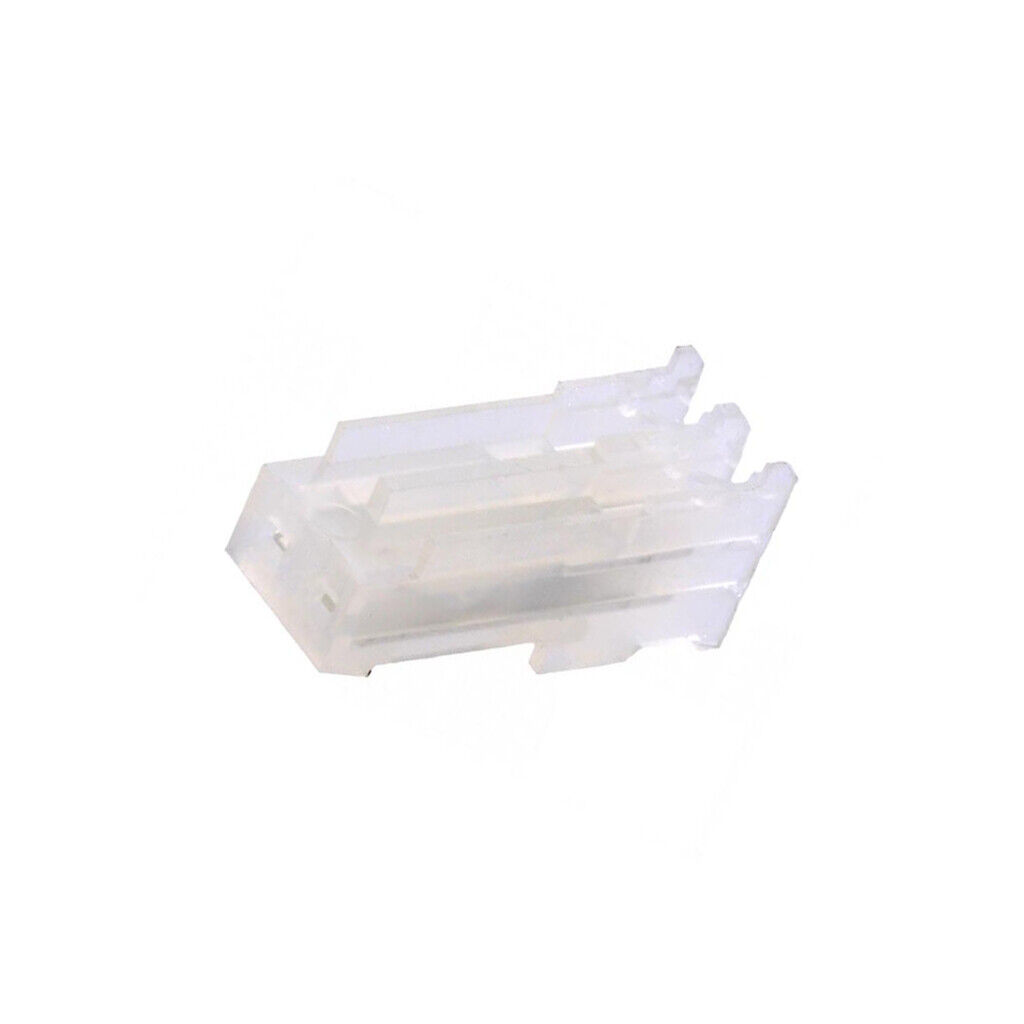

2-520272-2

TE Connectivity / AMP Brand

Quick Disconnect Terminal - Ultra-Fast FASTON Series - Female Quick Disconnect - 2.8mm x 0.81mm - 22-18AWG. ...

Datasheet

RoHS Compliant

Reel Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 2-520272-2 is Ultra-Fast FASTON series ultra-fast fully insulated FASTON Receptacle offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel F crimp FASTON terminals. The user-friendly design combines easy mating with rounded corners. The 0.187 and 0.250 series receptacles incorporate a two-stage roll configuration and a cantilever mounted dimple which provides easy insertion and multiple independent points of contact for reduced tab interface resistance. In addition, electrical short circuits from exposed leads are eliminated, even in equipment requiring close contact spacing. The ultra-fast FASTON receptacle housing completely encloses a tin plated copper alloy premier FASTON receptacle which has been stress-relieved for increased durability and resistance to abuse. The FASTON receptacle is recessed sufficiently within the housing to allow its use in 600V applications.

Product Highlights:

Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Straight
Tab Fit = 2.79 x 0.81 mm, 3.18 x 0.81 mm
Brass Material

Potential Applications:

Search Keywords: 25202722

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

2-520272-2

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
