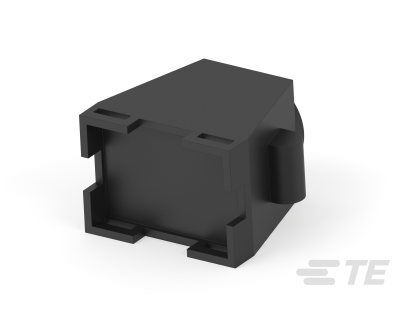

Image is representational - see manufacturer specifications

TE Connectivity / AMP Brand Authorized Distributor

280365

Name: 280365
Brand: Te Connectivity Amp Brand
SKU: 10324875
Price: 47.1 USD
Availability: InStock

AMPMODU, DBL ROW, CONTACT REC ...

View Datasheet

Ask the Datasheet

RoHS Compliant

BAG Packaging

Certificate of Compliance

DESCRIPTION

280365 is a connector component manufactured by TE Connectivity/AMP brand, designed for modular assembly applications. Based on the technical drawing specifications, this part is identified as position 4 in a series of connectors with specific dimensional tolerances. The component features dimension A of 7.62 mm, dimension B of 10.6 mm, and dimension C of 12.2 mm, with non-cumulative tolerances of ±0.3 mm for linear dimensions and ±2° for angles. The material is NORYL (UL94-V1) in black color, meeting standard electrical and mechanical requirements. This connector is commonly used in modular connector assemblies where precise dimensional control and reliable electrical performance are essential.

Product Highlights:

Housing
Not Preloaded
Number of Positions = 8
Housing Type = Receptacle
Number of Rows = Dual

Potential Applications:

Search Keywords: 280365

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

280365

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

1000

Package Type:

BAG

Mounting:

Cable Mount

Body Orientation:

Straight

Gender:

RCP

Number of Contacts:

Maximum Voltage Rating:

N/A

Maximum Current Rating:

3/Contact A

Operating Temperature:

-65 to 105 °C
