350827-1 by te connectivity / amp brand

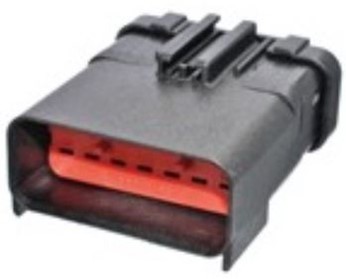

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

350827-1

06P UMNL HDR ASSY PC 94VO ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

350827-1 is a 6-circuit matrix socket header connector designed for Universal MATE-N-LOK II wire-to-board power applications. It features a standard tail configuration with a 0.550 inch (13.97 mm) A dimension and pre-tin duplex plating, which provides 0.000030 inch minimum gold in the mating area and matte tin on the solder tail end over 0.000050 inch minimum nickel underplate. The connector is rated UL94V-0 for flammability and is compatible with plug housing part number 770020-1 using pin contacts. This socket header is commonly used in power circuits for home appliances, particularly gas appliances, where reliable mating and secure contact retention are essential, with a compact 19.4 mm mated height and 5.0 mm contact centerline spacing.

Product Highlights:

  • Header
  • Universal MATE-N-LOK, Universal MATE-N-LOK II
  • Not CompactPCI
  • 6.35 x 6.35 mm Centerline, Matrix
  • Number of Circuits = 6

Search Keywords: 3508271

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
350827-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Package Type:
BAG
Type:
Power
Body Orientation:
Straight
Mounting:
Through Hole
Gender:
SKT
Number of Contacts:
6
Termination Method:
Solder
Maximum Voltage Rating:
600,600 VDC|VAC
Maximum Current Rating:
19/Contact A
Operating Temperature:
N/A

IN STOCK: 2,914

Ships today, if you order in

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
100
$1.12
300
$1.09
500
$1.08
1,000
$1.06
2,500
$1.05
5,000
$1.04
7,500
$1.03
10,000 +
$1.02
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

350848-6

06P UMNL PLUG TEST ASSY 94V0

350715-1

Connector Housing - Universal MATE-N-LOK Series - Plug - 6 Ways - 6.35 mm.

770020-1

6 Position Rectangular Housing Connector Plug White 0.250" (6.35mm)

Show 1 More
