3-643817-8 by te connectivity / amp brand

3-643817-8

TE Connectivity / AMP Brand

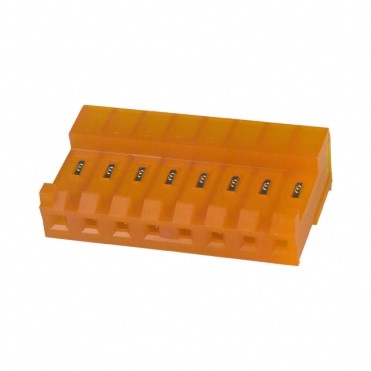

Rectangular Power Connector - Receptacle - Female Socket - 8 Position - 1 Row - 0.156"(3.96mm) Pitch - 18AWG - 90° Cabel Exit - IDC Cable Termination. ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3-643817-8 is rectangular power connector with closed end and polarizing key. Operating temperature range is from -55 to 105 °C ( -67 to 221 °F ).

Product Highlights:

  • MTA-156 Connectors
  • Number of Positions = 8
  • Mating Type = Receptacle
  • Connector Type = Closed End
  • Wire-to-Board Application

Search Keywords: 36438178

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
3-643817-8
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Package Type:
Bag
Type:
IDC Connector
Body Orientation:
Right Angle
Gender:
F
Mounting:
Cable Mount
Pitch:
3.96 mm
Number of Contacts:
8
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
7/Contact A
Termination Method:
IDT
Operating Temperature:
-55 to 105 °C

IN STOCK: 0

On Order: 8,628   can ship 12/22/25

Minimum Order: 250

Multiple: 250

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
250
$0.4195
500
$0.4175
1,000
$0.4150
2,500
$0.4095
5,000
$0.3970
7,500
$0.3950
10,000
$0.3930
15,000 +
$0.3910
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Accessories

58247-1

Terminating Head for MTA-156 Closed End Receptacle Connectors. Used with 58074-1 (Manual) ...

58247-2

MTA 156 CRIMP HEAD PRODUCTION DISCRETE

58247-3

MTA 156 CRIMP HEAD PRODUCTION RBBN CABLE

59804-1

MAINTENANCE TOOL

640383-8

08P MTA156 HDR ASSY STR SQ SN

3-640445-8

08P MTA156 HDR ASSY FL/STR SN

3-644615-8

08P MTA156 POL HDR ASSY LF

640384-8

08P MTA156 HDR ASSY STR RND SN

640385-8

08P MTA156 HDR ASSY SQ R/A

640388-8

Wire-To-Board Connector - 3.96 mm - 8 Contacts - Header - MTA-156 Series - Through Hole - ...

640389-8

08P MTA156 HDR ASSY SQ R/A F/L

640445-8

Wire-To-Board Connector - Vertical - 3.96 mm - 8 Contacts - Header - MTA-156 Series - Thro ...

2-647123-8

08P MTA156 SHRD HDR ASSY SQ SN

2-647125-8

08P MTA156 SHRD HDR ASSY LF

2-647127-8

08P MTA156 SHRD HDR ASSY LF

3-644617-8

08P MTA156 HDR ASY PO RA FB LF

644749-8

08P MTA156 HDR ASSY STR SQ SN

644751-8

08P MTA156 HDR ASSY R/A

644752-8

08P MTA156 HDR ASSY SQ STR F/L

644753-8

08P MTA156 HDR ASSY RN STR F/L

Show 18 More
