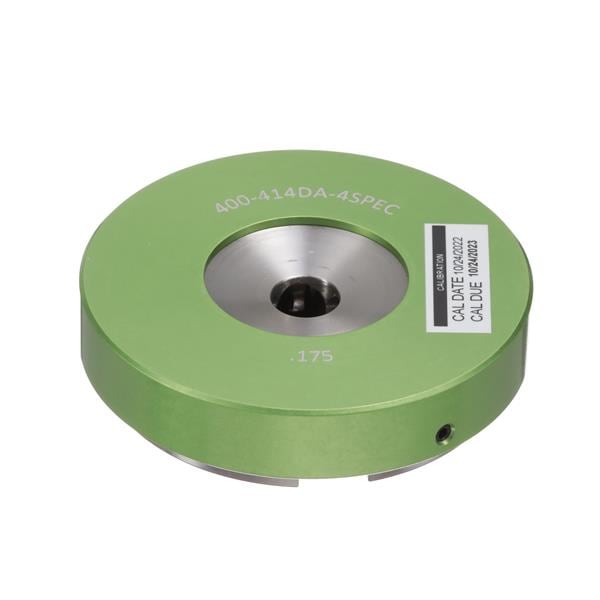

Image is representational - see mfr. specs

400-414DA-12N

TE Connectivity / AMP Brand

The 400-414DA-12N is a crimp die tooling part used for terminating DEUTSCH size 12 solid contacts. ...

Datasheet

RoHS Compliant

Pack Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 400-414DA-12N is a crimp die tooling part designed for the HDP-400 power crimp press to terminate DEUTSCH size 12 solid contacts. This die accommodates wire sizes from 12 AWG to 18 AWG, producing crimps with specified tensile strengths, such as 334 N for 12 AWG wire. It is engineered to create specific crimp heights, ranging from 1.73 mm to 1.88 mm depending on the wire gauge. This tooling is essential for creating reliable electrical connections in applications using DEUTSCH connectors, ensuring the contacts perform within their operating temperature range of -55Â°C to 125Â°C.

Product Highlights:

Potential Applications:

Search Keywords: 400414DA12N

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

400-414DA-12N

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8203208000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Pack

IN STOCK: 7

Can Ship immediately

BONDED Quantity: 0

Manufacturer Stock: 0

Stock lot only:

MOQ for out of Stock Qty: 2

Multiple: 1

Factory Lead-Time 12 Weeks

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price (USD)

Qty

Unit Price

$569.35

$566.58

$565.16

$563.75

5 +

$516.77
