487526-4 by te connectivity / amp brand

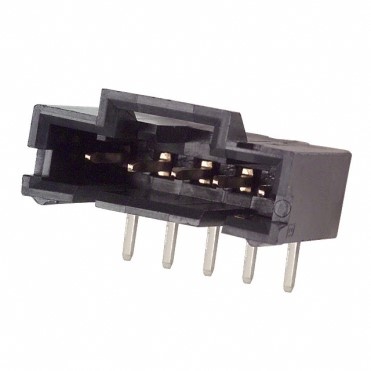

Image is representational - see mfr. specs

487526-4

TE Connectivity / AMP Brand

FFC / FPC Board Connector - 2.54 mm - 5 Contacts - Receptacle - FFC Series - Wire Lead. ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

TE Connectivity's 487526-4 discrete wire housing allows for durable connections between discrete wires. This RCP connector has 5 RCP contacts. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. This product is 12.54 mm long and 13.72 mm. 487526-4 is housed in thermoplastic. This rectangle connector has an operating temperature of -65 to 105 °C.

Product Highlights:

  • Housing
  • 2.54 mm Centerline
  • Connector Type = Slimline
  • Number of Positions = 5
  • Number of Rows = Single

Search Keywords: 4875264

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
487526-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
PH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Carton
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
5
Maximum Voltage Rating:
300 VAC
Maximum Current Rating:
2/Contact A
Operating Temperature:
-65 to 105 °C

IN STOCK: 8,087

Ships today, if you order in

Minimum Order Quantity: 25

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
25
$1.223
250
$0.942
500
$0.919
1,000
$0.909
3,000
$0.904
5,000
$0.900
8,000
$0.896
10,000 +
$0.891
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
