487526-6 by te connectivity / amp brand
Image is representational - see mfr. specs

487526-6

TE Connectivity / AMP Brand

007 HOUSING FFC RCPT 100CL SR ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

487526-6 is a flexible film connector housing designed for flat-flex cable (FFC) applications. This slimline receptacle housing features a 2.54 mm centerline pitch with 7 positions arranged in a single row configuration. The connector includes a latch mechanism and polarized design to ensure proper mating orientation. It is RoHS compliant, making it suitable for environmentally conscious applications. Common uses include ribbon and flat-flex wire connections in electronic devices where compact, reliable interconnect solutions are required.

Product Highlights:

  • Housing
  • 2.54 mm Centerline
  • Connector Type = Slimline
  • Number of Positions = 7
  • Number of Rows = Single

Search Keywords: 4875266

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
487526-6
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
PH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Carton
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
7
Maximum Voltage Rating:
300 VAC
Maximum Current Rating:
2/Contact A
Operating Temperature:
-65 to 105 °C

IN STOCK: 12,575

Ships today, if you order in

Minimum Order Quantity: 50

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
50
$0.6125
250
$0.5846
500
$0.5726
1,000
$0.5605
3,000
$0.5415
5,000
$0.4188
8,000 +
$0.4124
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

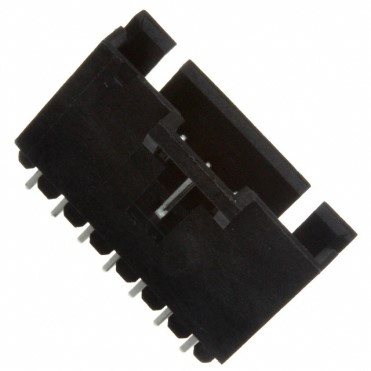

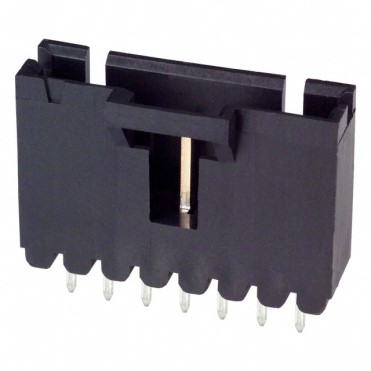

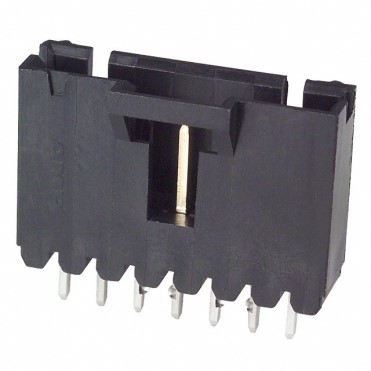

103634-6
