5748472-1 by te connectivity / amp brand

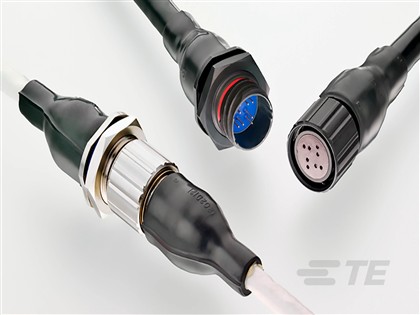

Image is representational - see mfr. specs

5748472-1

TE Connectivity / AMP Brand

KIT,PLUG,78P,HDP-22,SHLD HDWRE ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
Discontinued
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

5748472-1 is an HDP-22 crimp snap-in contact connector plug assembly designed for D-subminiature applications requiring shielding and cable strain relief. This connector features 78 contact positions (Shell Size 5) and accommodates recommended cable outer diameters ranging from 0.338 to 0.490 inches, with a maximum inner cable bundle diameter of 0.450 inches after jacket and braid removal. The connector shell is constructed of steel with tin plating, the insert is 94V-0 rated thermoplastic in black, and the shield is steel with tin plating; jackscrews are zinc alloy. The assembly includes a PVC black enclosure and is supplied unassembled and bulk-packaged in quantities of 100 pieces. This connector is ideal for industrial machinery, medical instrumentation, computers, storage systems, and on-machine industrial communications where reliable shielded connections and compact form factors are essential.

Product Highlights:

  • Connector Kit
  • Product Series = HDP-22 (Crimp Snap)
  • Number of Positions = 78
  • Shielded
  • Plug

Search Keywords: 57484721

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5748472-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Type:
High Density D-Sub
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
Pin
Termination Method:
Crimp
Shell Size:
5
Number of Contacts:
78
Contact Plating:
N/A
Operating Temperature:
N/A
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 439

Ships today, if you order in

Minimum Order Quantity: 5

Price (USD)

Qty
Unit Price
5
$10.39
25
$9.42
50
$9.00
100
$8.73
250
$8.26
500
$8.03
1,000 +
$7.92
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

1658685-1

HDP-22,RCPT,SIZE 5,78 POSN
