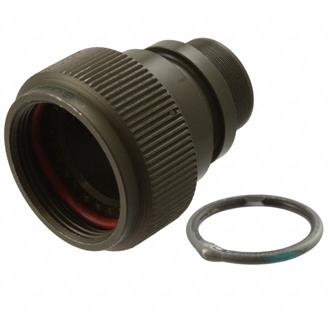

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

60983-1

.058 DIA PIN REC .010GPPHBZ ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

60983-1 is a Type A PCB disconnect receptacle designed for terminating wires to 0.058" (1.47 mm) diameter pins on printed circuit boards. This receptacle accommodates wire sizes from 26-22 AWG (0.15-0.4 mm²) with insulation diameters ranging from 0.035" to 0.065" (0.89-1.65 mm). Constructed from phosphor bronze with a gold finish, it features dimensions of 0.155" (3.94 mm) for dimension A and 0.380" (9.65 mm) for dimension B. The receptacle is available as a loose piece terminal and is commonly used in electronic assemblies requiring reliable wire-to-board connections.

Product Highlights:

  • Receptacle
  • A Body Shape
  • Disconnect Diameter = 1.47 mm
  • Wire Range = 0.12-0.40² [26-22] mm [AWG]
  • With Insulation Support

Search Keywords: 609831

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
60983-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1000
Package Type:
BAG
Type:
Receptacle Terminal
Gender:
RCP
Tab Size:
N/A
Stud Size:
N/A
Wire Size:
22-26 AWG
Color:
N/R
Operating Temperature:
-55 to 105 °C

IN STOCK: 37,544

Ships today, if you order in

MOQ for In Stock Qty: 1000

MOQ for out of Stock Qty: 10000

Multiple: 1000

Factory Lead-Time 10 Weeks
