RECOMMENDED REPLACEMENT

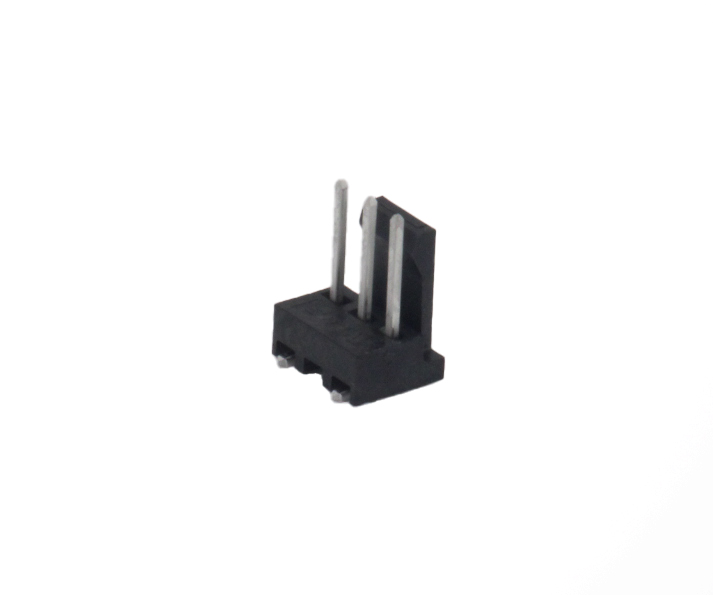

Image is representational - see manufacturer specifications
647166-3
MTA-100 HEADER ASSEMBLY, SURFACE MOUNT, ...
RoHS Compliant
Bag Packaging
Discontinued & Replaced
Certificate of Compliance
DESCRIPTION
MTA-100 HEADER ASSEMBLY, SURFACE MOUNT,
Product Highlights:
- MTA-100 Connectors
- Number of Positions = 3
- Mating Type = Header
- Wire-to-Board Application
- 2.54 mm Contact Centerline Spacing
Search Keywords: 6471663
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
647166-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier's Standard Package:
500
Package Type:
Bag
Sealable:
No
Contact Transmits (Typical):
Power
Connector & Contact Terminates To:
Printed Circuit Board
Contact Mating Area Plating Material:
Tin-Lead
Contact Type:
Pin
Packaging Quantity:
500
Contact Underplating Material Thickness:
50 µin, 1.27 µm
UL File Number:
E28476
Circuit Application:
Signal
Connector System:
Wire-to-Board
PCB Contact Termination Area Plating Material:
Tin-Lead
Housing Material:
Nylon 4/6
Contact Current Rating (Max):
5 A
Contact Mating Area Plating Material Thickness:
150 – 250 µin, 3.81 – 6.3 µm
Panel Mount Feature:
Without
Number of Positions:
3
Housing Color:
Black
UL Flammability Rating:
UL 94V-0
Mating Retention:
With
PCB Mount Retention:
Without
PCB Thickness (Recommended):
.01 in, .25 mm
Strain Relief:
Without
Contact Underplating Material:
Nickel
Contact Base Material:
Copper Alloy
Contact Retention:
Without
Mating Retention Type:
Friction Lock
PCB Contact Termination Area Plating Material Finish:
Bright
Centerline (Pitch):
.1 in, 2.54 mm
CSA Rating:
Certified
Connector Mounting Type:
Board Mount
Agency/Standard:
CSA , UL
UL Rating:
Recognized
Operating Temperature Range:
-55 – 105 °C, -67 – 221 °F
Mating Post Length:
.29 in, 7.37 mm
Contact Shape:
Square
Termination Method to Wire & Cable:
Solder
PCB Mount Alignment:
Without
Contact Layout:
Inline
PCB Contact Termination Area Plating Material Thickness:
150 – 250 µin, 3.81 – 6.3 µm
Number of Rows:
1
Connector Height:
.34 in, 8.81 mm
PCB Mount Orientation:
Vertical
Operating Voltage:
250 VAC
Header Type:
Unshrouded
PCB Connector Assembly Type:
PCB Mount Header
CSA File Number:
LR7189
Termination Method to Printed Circuit Board:
Surface Mount
Packaging Method:
Bag/Box
Mating Alignment:
Without
Life Cycle:
Discontinued & Replaced
