6-520315-6 by te connectivity / amp brand

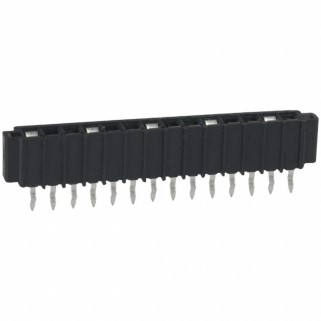

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

6-520315-6

FFC, FPC Connector - 16 Position - 0.100" (2.54mm) Pitch - 1A - 250V - Vertical - Kinked Pin Termination - Through Hole. ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 6-520315-6 from TE Connectivity / AMP Brand is through hole mounting FFC/FPC connector with 16 positions, 0.100" (2.54mm) pitch and kinked pin termination. This vertical connector has 1A current rating and 250V voltage rating. Operating temperature range is from -55 to 105 °C ( -67 to 221 °F ).

Search Keywords: 65203156

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
6-520315-6
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
90
Package Type:
TRAY
Type:
FFC Connector
Number of Contacts:
16
Pitch:
2.54 mm
Mounting:
Through Hole
Termination Method:
Solder
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Dimension:
45.54 x 4.83 x 6.93 mm
Operating Temperature:
N/A

IN STOCK: 1,150

Ships today, if you order in

Minimum Order Quantity: 90

Multiple: 90

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
90
$2.69
180
$2.66
270
$2.48
540
$2.40
1,080
$2.28
2,520
$2.19
5,040
$2.18
7,560 +
$2.17
Supplier's Standard Package
