66109-4 by te connectivity / amp brand

66109-4

TE Connectivity / AMP Brand

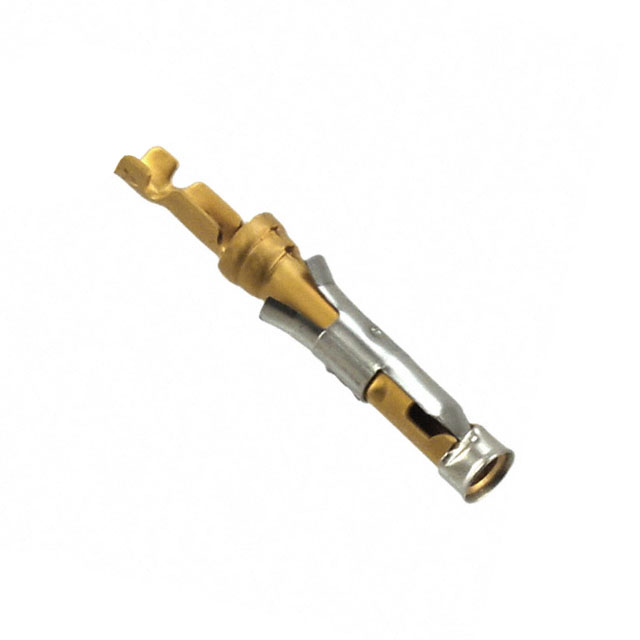

Socket Contact - Multimate III+ Series - 24 to 26 AWG - Brass Contact with 30.0µin (0.76µm) Gold Finish - Crimp Termination - Loose Piece. ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 66109-4 from TE Connectivity / AMP Brand is socket contact Multimate III+ series for wire range from 24 to 26 AWG and crimp termination. This contact is made of brass and has 30.0µin (0.76µm) thick gold finish. Operating temperature range is from -55 to 150 °C ( -67 to 302 °F ).

Product Highlights:

  • Socket
  • Gold (30) over Nickel (30) Contact Mating Area Plating
  • Wire Range = 0.12-0.24² [26-24] mm [AWG]
  • Insulation Diameter = .89 - 1.40 mm
  • Brass Contact Material

Search Keywords: 661094

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
66109-4
RoHS:
Yes
HTS:
8536904000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Carton
Contact Type:
Power
Gender:
SKT
Contact Size:
16
Wire Size:
24-26 AWG
Contact Material:
Brass
Contact Plating:
Gold over Nickel
Maximum Current Rating:
N/A
Termination Method:
Crimp
  Different packaging options available.  See Alternatives

IN STOCK: 10,204

Ships today, if you order in

Minimum Order: 25

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
25
$1.102
250
$0.796
500
$0.778
1,000
$0.724
3,000
$0.721
5,000
$0.717
8,000
$0.714
10,000 +
$0.710
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Product Changes

Accessories

58495-1

Hand Crimper Tool - Manual - Backplane and Circular Contacts - 16 to 28 AWG - Ratchet - Si ...

58495-2

Tool Die Set For Backplane and Circular Contacts - 16 to 28 AWG.

200893-2

Insertion Tool for TYPE II, III+

305183

Extraction Tool For Type II, III, III(+), VI, X, and Subminiature Coaxial Contacts.

539972-1

Extraction Tool for Universal MATE-N-LOK; Socket Ø1.5; TYPE II, III+; CI-2, -3, -H; Econos ...

Show 3 More
