ALTERNATIVE PRODUCTS
ROHs Equivalent

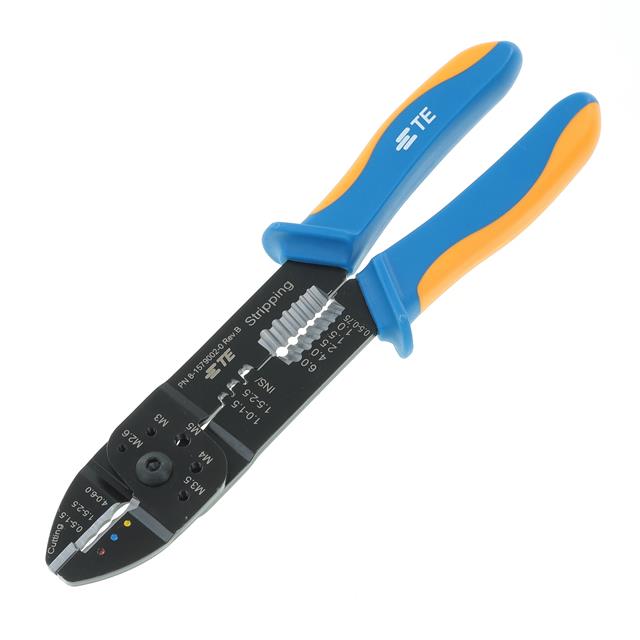

8-1579002-0
8-1579002-0

In Stock: 27

Minimum Order: 1

VIEW PRODUCT
696201-1 by te connectivity / amp brand
Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

696201-1

HAND TOOL, SUPER CHAMP ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The 696201-1 is a Super CHAMP Service Hand Tool designed for cutting and stripping wire, and crimping terminals and splices in electrical applications. The tool features integrated wire cutters, wire strippers with length gages, crimp dies, bolt cutters, and stud size gages to accommodate a wide range of wire gauges from 22 AWG to 10 AWG and various terminal stud sizes including 6, 8, 10, and 1/4 inch configurations. It supports crimping of multiple terminal types including wire terminals, butt splices, parallel splices, and closed-end connectors with color-coded crimp positions for different wire gauge ranges (red for 22-16 AWG, blue for 16-14 AWG, and yellow for 12-10 AWG). This hand tool is intended for occasional use and low-volume applications in electrical service and maintenance work, providing a compact solution for field termination and wire preparation tasks.

Search Keywords: 6962011

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
696201-1
Unit of Measure:
Per Each
RoHS:
No
HTS:
8205595560
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Category:
Connector
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 73

Ships today, if you order in

Minimum Order Quantity: 2

Price (USD)

Qty
Unit Price
2
$56.04
7
$54.99
13
$53.96
25
$52.91
50 +
$51.89
Log in for special pricing Click for Quote Price Match Request
