745211-7 by te connectivity / amp brand
Image is representational - see mfr. specs

745211-7

TE Connectivity / AMP Brand

25 HDE AP PLUG, LEAD FREE ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

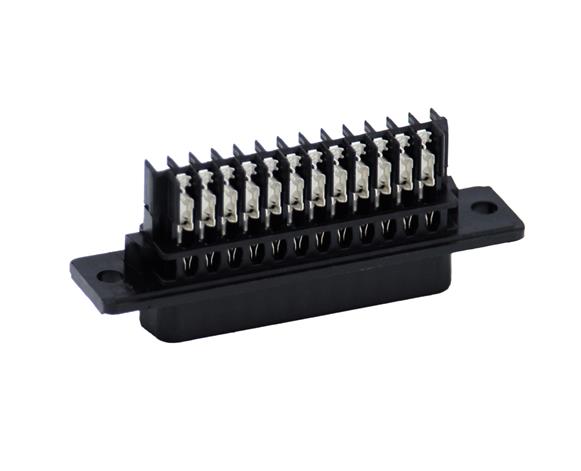

745211-7 is an HDE-20 all-plastic IDC (Insulation Displacement Contact) D-subminiature plug connector from the AMPLIMITE cable connector series. This shell size 4 connector features 37 contact positions with dimensions of 2.732 inches (Dim. A) and 2.500 inches (Dim. B), and accepts 26-22 AWG wire. The housing is constructed from 94V-0 rated black thermoplastic with phosphor bronze contacts featuring duplex plating (gold flash on mating end, tin on termination end, with nickel underplating). The connector is preloaded with insulation displacement pin contacts that accept a maximum wire insulation thickness of 0.015 inches and maximum wire insulation diameter of 0.060 inches. It is designed for terminating solid or stranded wire (7 strand max) and is intermateable with MIL-C-24308 compliant D-subminiature connectors, making it suitable for industrial machinery, medical instrumentation, computers, and data storage applications.

Product Highlights:

  • Connector
  • Product Series = HDE-20 (IDC)
  • Number of Positions = 25
  • Plug
  • With Contacts

Search Keywords: 7452117

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
745211-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536698000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
84
Package Type:
Tray
Type:
D-Subminiature
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
M
Termination Method:
IDT
Shell Size:
3
Number of Contacts:
25
Contact Plating:
Gold Over Nickel,Gold Over Palladium Nickel Over Nickel
Operating Temperature:
-55 to 105 °C

IN STOCK: 1,322

Ships today, if you order in

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 5

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
5
$15.58
50
$13.16
100
$12.69
168
$12.51
336
$12.35
504
$12.01
672 +
$11.96
