749180-1 by te connectivity / amp brand

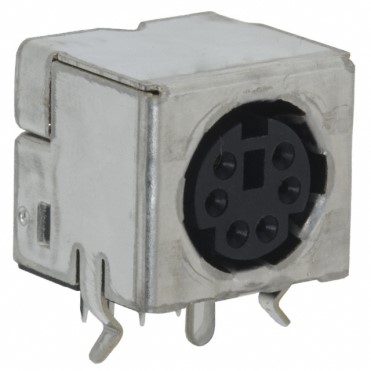

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

749180-1

Conn Mini Circular DIN F 6 POS Solder RA Thru-Hole 6 Terminal 1 Port Automotive ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

749180-1 is a shielded miniature circular DIN receptacle designed for right-angle board mount applications in computer I/O systems. This connector features 6 positions in a standard thru-hole configuration with integrated hold-down capability. The housing is constructed from thermoplastic material with 94V-O flame rating and black coating, while the shield is made of copper alloy plated with a minimum of 0.00254 mm tin-lead over 0.00076 mm nickel. The contacts are phospho-bronze with gold plating in the mating area, ensuring reliable electrical connections and corrosion resistance. This connector is commonly used in personal computer systems and industrial I/O applications where shielded, compact circular connectors are required for signal integrity and EMI protection.

Product Highlights:

  • Connector
  • Number of Positions = 6
  • PCB Mount Angle = Right Angle
  • Shielded
  • Without Front Panel Grounding

Search Keywords: 7491801

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
749180-1
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
37
Body Orientation:
Right Angle
Life Cycle:
Discontinued
  This product is discontinued, but still in stock
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 708

Can Ship immediately

Minimum Order Quantity: 20

Price (USD)

Qty
Unit Price
20
$6.56
37
$4.23
629
$1.60
1,258
$1.48
2,516
$1.35
4,995 +
$1.28
