770166-2 by te connectivity / amp brand

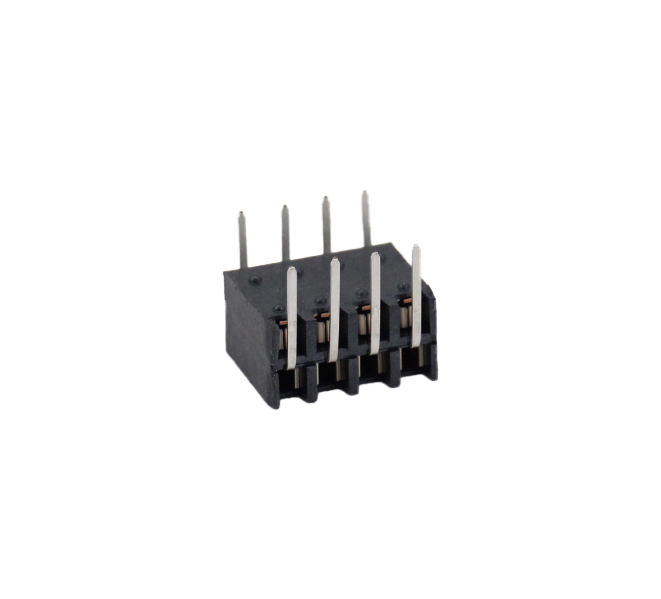

Image is representational - see mfr. specs

770166-2

TE Connectivity / AMP Brand

02P MINI-UMNL ASSY VO SNAU ...

Datasheet
RoHS Non-Compliant
Bag Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

770166-2 is a 2-circuit in-line vertical pin header designed for use with Mini-Universal MATE-N-LOK connectors in wire-to-board applications. This header features drain holes and is available with duplex plating finish, with an A dimension of 0.387 inches (9.83 mm). The header housing is made from UL94V-0 rated 6/6 nylon material and mates with plug housings 172165-1 (Mini-Universal MATE-N-LOK) and 794184-1 (Mini-Universal MATE-N-LOK 2) using socket contacts. This RoHS compliant connector is suitable for PCB board mounting applications requiring reliable wire-to-board connections.

Product Highlights:

  • Header
  • Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2
  • Number of Circuits = 2
  • 4.14 mm Centerline, Matrix
  • In-Line Contact Layout

Search Keywords: 7701662

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
770166-2
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
Bag
Type:
Power
Body Orientation:
Straight
Mounting:
Through Hole
Gender:
HDR
Number of Contacts:
2
Termination Method:
Solder
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
9.5/Contact A
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 30,200

Ships today, if you order in

Minimum Order Quantity: 200

Multiple: 200

Price (USD)

Qty
Unit Price
200
$1.137
400
$1.127
600
$1.035
1,000
$0.998
2,600
$0.993
5,000
$0.887
7,600
$0.882
10,000 +
$0.845
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

172165-1

This 2 circuit plug from TE’s Mini-Universal MATE-N-LOK Connectors series can be used for ...

794184-1

02P MINI UMNL2 PLUG HSG UL94V0
