770249-3 by te connectivity / amp brand

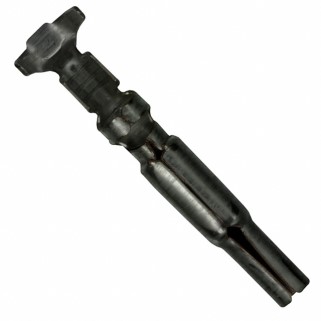

Image is representational - see mfr. specs

770249-3

TE Connectivity / AMP Brand

UMNL II SOK PTPPHBZ LP 12-14 ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

770249-3 is a loose piece socket contact designed for use in Universal MATE-N-LOK connector systems. This contact is manufactured from phosphor bronze with a pre-tin plating finish, providing reliable electrical connectivity and corrosion resistance. It accommodates wire sizes ranging from 20-14 AWG (0.5-2.0 mm²) with an insulation diameter range of 0.060-0.130 inches (1.52-3.30 mm), and features a socket length dimension of 0.980 inches (24.90 mm). The contact is part of TE Connectivity's soft shell pin and socket connector family, commonly used in power circuit applications for home appliances and industrial equipment where secure wire-to-board connections are required.

Product Highlights:

  • Contact
  • Universal MATE-N-LOK II
  • Not CompactPCI
  • Contact Type = Socket
  • Wire Range = 0.50-2.00² [20-14] mm [AWG]

Search Keywords: 7702493

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
770249-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Bag
Contact Type:
Stamped Power
Gender:
SKT
Contact Size:
N/A
Wire Size:
14-20 AWG
Contact Material:
Phosphor Bronze
Contact Plating:
Pre-Tin
Maximum Current Rating:
19 A
Termination Method:
Crimp
  Different packaging options available.  See Alternatives

IN STOCK: 31,602

Ships today, if you order in

Minimum Order Quantity: 100

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
100
$0.4484
500
$0.3643
1,000
$0.3634
3,000
$0.3331
5,000
$0.3194
8,000
$0.3186
15,000
$0.3109
25,000 +
$0.2884
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

91506-1

CCII UNML UNML II PIN SKT 16-14 ASSY

91508-1

CCII UNML UNML II PIN SKT 20-18 ASSY

90547-1

Crimp Tool - Ratchet - AMP Universal MATE-N-LOK Series 20 to 14 AWG Contacts - PRO-CRIMPER ...

90547-2

PROCRIMPER DIE ASSY UNIV MNL

Show 2 More
