776539-3 by te connectivity / amp brand

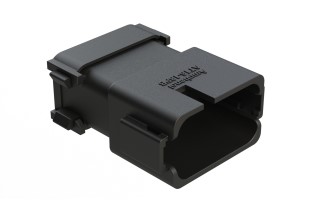

Image is representational - see mfr. specs

776539-3

TE Connectivity / AMP Brand

AS 16, 12P CAP ASSY, RD, KEY 3 ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

776539-3 is an AMPSEAL 16 series 12-way cap connector designed for environmentally sealed electrical connections in industrial and commercial transportation applications. This connector features a C key configuration with a black housing and yellow PLR (Positive Lock Retainer), along with a reduced diameter seal for secure wire sealing. The contact size is 1.58 mm, and the connector includes an integrated wedge/TPA (Terminal Position Assurance) for reliable contact retention. Ideal for harsh environment applications requiring robust, sealed multi-pin connections in automotive, agricultural, and industrial equipment.

Product Highlights:

  • Connector
  • Not Preloaded
  • Connector Style = Receptacle
  • Accepts Contact Gender = Pin
  • 4.50 mm Centerline

Search Keywords: 7765393

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
776539-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bag
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
12
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A

IN STOCK: 820

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
5
$3.94
50
$3.44
100
$3.37
250
$3.31
500
$3.29
1,000
$3.28
2,500 +
$3.27
Log in for special pricing Click for Quote Price Match Request
