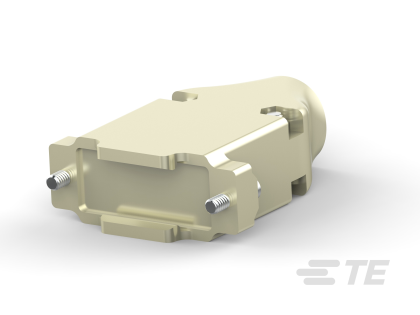

5748676-2
5748676-2

In Stock: 46

Minimum Order: 5

VIEW PRODUCT
828277-5 by te connectivity / amp brand
Image is representational - see mfr. specs

828277-5

TE Connectivity / AMP Brand

Backshell/Cable Clamp 45°/180° 2 Shell Size Bright Nickel Over Copper Polycarbonate Individual ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

828277-5 is an obsolete cover assembly designed for HD-20 15-pin connectors, manufactured by TE Connectivity/AMP. The assembly comprises multiple zinc-plated steel components including lifting screws (M 3), fastening screws, protective caps, and support elements. Key dimensional specifications include overall dimensions of 45.2 mm length, 40.0 mm width, and 30.0 mm height, with threaded mounting points specified as M 3 or 4.40 UNC-2A. The cover features a composite construction with materials including polycarbonate filled with aluminum flakes, ABS with nickel plating over copper, and PPO-GV black components. This assembly was designed for use in industrial connector applications requiring protective shielding and secure mechanical fastening.

Product Highlights:

  • Backshell/Cable Clamp
  • Cable Clamp Type = Two-Piece RFI/EMI Shield
  • Straight(180°)/45° Cable Exit Angle
  • Cable Insulation Diameter = 7.00 mm
  • Number of Positions = 15

Search Keywords: 8282775

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
828277-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Backshell/Cable Clamp
Shell Size:
2
Angular Function:
45,180 °
Operating Temperature:
N/A
Connector Type:
Connector D-Subminiature
Dimension:
40 x 45.2 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 458

Ships today, if you order in

Minimum Order Quantity: 15

Price (USD)

Qty
Unit Price
15
$5.25
65
$5.15
150
$5.06
250
$4.95
500
$4.86
1,000
$3.88
2,500 +
$3.40
