87523-4 by te connectivity / amp brand

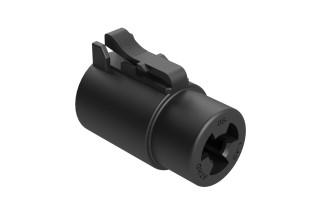

Image is representational - see mfr. specs

87523-4

TE Connectivity / AMP Brand

MOD IV RECP PLTD 15 SEL ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

87523-4 is a crimp socket contact designed for wire-to-board interconnection applications within the AMPMODU Mod IV connector series. This contact features a tin-plated mating area with a copper-tin-phosphor bronze base material and supports wire gauges from 0.20-0.602 mm² (24-20 AWG) with a wire insulation diameter of 1.75 mm. It offers a rated current of 3 A, voltage rating of 250 VAC, and operates over a temperature range of -65°C to +105°C. The contact provides reliable electrical performance with 12 mO termination resistance and 5,000 MO insulation resistance. Ideal for general-purpose wire-to-cable terminations, this RoHS/ELV compliant contact is approved to UL E28476 and CSA LR7189 standards.

Product Highlights:

  • Contact
  • Contact Type = Receptacle
  • Terminate To Wire
  • Wire Insulation Diameter = 1.75 mm
  • Wire Range = 0.20-0.60² [24-20] mm [AWG]

Search Keywords: 875234

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
87523-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
12500
Package Type:
Reel
Contact Type:
Signal
Gender:
SKT
Contact Size:
N/A
Wire Size:
20-24 AWG
Contact Material:
Copper-Tin-Phosphor Bronze
Contact Plating:
Gold over Nickel
Maximum Current Rating:
3 A
Termination Method:
Crimp

IN STOCK: 0

MOQ for out of Stock Qty: 15625

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
15,625
$0.5153
31,250
$0.2720
46,875
$0.1870
62,500 +
$0.1833
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

843996-3

TOOL, EXTRACTION RESET

91516-1

Hand Crimper Tool Rectangular Contacts
