929938-3 by te connectivity / amp brand

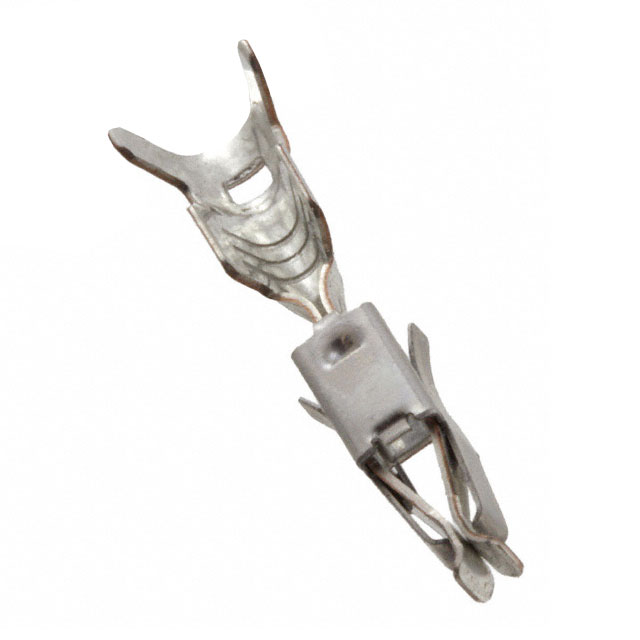

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

929938-3

Contact PIN Crimp ST Cable Mount Automotive Loose Piece ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Certificate of Compliance

DESCRIPTION

929938-3 is a Junior-Power-Timer contact designed for the AMP Timer connector system, specifically configured for wire sizes in the 1.5–2.5 mm² range. This contact features a single sealing system with secondary locking and a length of 21.0 mm, providing reliable electrical connection and mechanical retention in demanding applications. The contact is available with multiple material and surface finish options including CuFe2 pre-tinned, CuSn4 pre-tinned, CuSn4 with silver plating (min. 0.75 µm on contact body, min. 3.0 µm on contact zone), and CuSn with gold plating on the contact zone. The maximum insulation diameter is 2.2–3.0 mm, accommodating various wire gauges within the specified range. These contacts are commonly used in automotive, industrial, and power distribution applications where robust connections and environmental sealing are essential.

Product Highlights:

  • Contact
  • Contact Type = Junior-Power-Timer
  • Receptacle
  • Wire Range = 1.50-2.50² [15.5-13.5] mm [AWG]
  • Insulation Diameter = 2.21 - 3.00 mm

Search Keywords: 9299383

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
929938-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
BOX
Contact Type:
Power
Gender:
Pin
Contact Size:
N/A
Wire Size:
13-15 AWG
Contact Material:
Brass
Contact Plating:
Gold
Maximum Current Rating:
N/A
Termination Method:
Crimp

IN STOCK: 2,944

Can Ship immediately

MOQ for In Stock Qty: 700

MOQ for out of Stock Qty: 700

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
700
$0.4622
3,000
$0.4609
6,000
$0.4598
12,000
$0.2434
18,000
$0.1713
24,000 +
$0.1679
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

4-1579007-3

Extraction Tool for Standard TIMER etc. Kit comprises: 1-1579007-4 & 1-1579007-6

539737-2

ERGO DIE JPT

1-1579007-6

Extraction Tool - Junior Power Timer (JPT) - SPT - TAB 2.8/4.8/5.8mm Contacts.

58605-1

ProCrimper III Hand Crimping Tool Assembly

Show 2 More
