ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT
2-1761679-7
2-1761679-7

In Stock: 1,652

Minimum Order: 80

VIEW PRODUCT

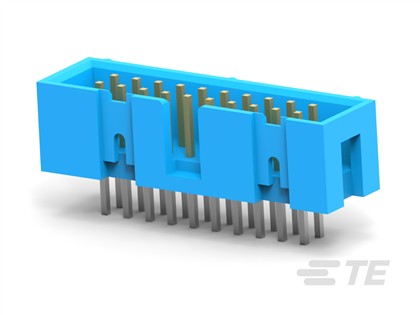

609-2037 by te connectivity / buchanan brand
Image is representational - see mfr. specs

609-2037

TE Connectivity / Buchanan Brand

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole ...

Datasheet
RoHS Non-Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

609-2037 is a connector post assembly manufactured by TE Connectivity (Buchanan brand) designed for electronic interconnection applications. The posts are constructed from phosphor bronze material with precision plating specifications: 0.00076 mm minimum gold on the mating area, 0.00254 mm minimum tin-lead on the solder end, and 0.00127 mm minimum nickel plating on the entire post surface. The assembly features a 2.54 mm [0.100 inch] center-to-center spacing and includes dimensional specifications with tight tolerances for reliable board-level integration. This connector post assembly is commonly used in standard PCB layouts where consistent spacing and reliable solder connections are essential for electronic equipment assembly.

Search Keywords: 6092037

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Buchanan Brand
Part No:
609-2037
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Termination Method:
Solder
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 418

Can Ship immediately

Minimum Order Quantity: 50

Price (USD)

Qty
Unit Price
1
$1.47
50
$1.34
300
$1.29
1,100
$1.24
2,800
$1.18
8,600 +
$1.14
Log in for special pricing Click for Quote Price Match Request
