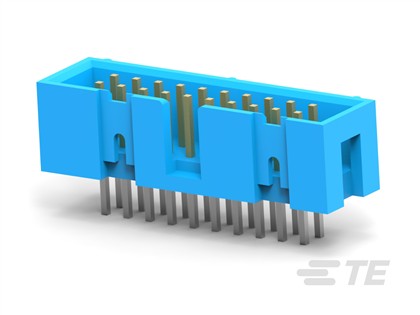

Older Equivalent
609-2037
609-2037

In Stock: 418

Minimum Order: 50

VIEW PRODUCT
2-1761679-7 by te connectivity / amp brand
Image is representational - see mfr. specs

2-1761679-7

TE Connectivity / AMP Brand

IDC LOW PRO HDR 20P VERT BLUE ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

2-1761679-7 is a vertical low-profile IDC (insulation displacement connector) header assembly designed for printed circuit board applications. The connector features 9 contact positions with phosphor bronze posts and a PBT housing material rated UL94V-O. The posts are finished with 0.00076 mm minimum gold plating on the mating area, 0.00254 mm minimum tin on the solder end, and 0.00127 mm minimum nickel plating over the entire post surface. The assembly has a compact length of 22.86 mm (0.900 inches) and is designed for reliable interconnection in low-profile applications. This connector is commonly used in data acquisition systems, instrumentation, and consumer electronics where space constraints and reliable board-level connections are required.

Product Highlights:

  • Connector Type = Pin Header
  • Low Profile
  • Number of Positions = 20
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 217616797

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
2-1761679-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
80
Package Type:
Tray
Type:
Ejector Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

IN STOCK: 1,652

Can Ship immediately

Minimum Order Quantity: 80

Multiple: 80

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
80
$2.26
160
$2.20
320
$2.17
560
$2.11
1,040
$2.10
2,560
$2.09
5,040
$1.90
7,520 +
$1.88
Suppliers Standard Package
