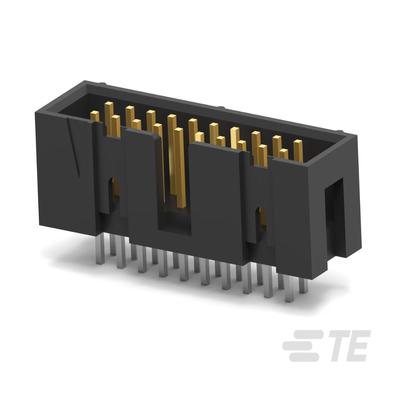

636-2027 by te connectivity / buchanan brand
Image is representational - see mfr. specs

636-2027

TE Connectivity / Buchanan Brand

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

636-2027 is a connector post assembly designed for reliable electrical interconnection in PCB applications. The assembly features phosphor bronze posts with precision plating specifications: a minimum of 0.00038 mm (0.000015 inches) gold on the mating area and 0.00254 mm (0.000100 inches) tin-lead on the solder end, with 0.00127 mm (0.000050 inches) minimum nickel plating over the entire post. The housing is constructed from PCT material with UL94V-O flame rating in black color, ensuring durability and safety compliance. Post spacing is standardized at 2.54 mm (0.100 inches) with dimensional tolerances specified for precise PCB board layout and alignment. This connector is suitable for applications requiring robust, high-reliability electrical connections in industrial and commercial electronic equipment.

Search Keywords: 6362027

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Buchanan Brand
Part No:
636-2027
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Termination Method:
Solder
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 2,876

Can Ship immediately

Minimum Order Quantity: 65

Price (USD)

Qty
Unit Price
65
$1.0815
350
$1.0401
1,400
$0.9981
3,500
$0.9560
10,900 +
$0.9140
Log in for special pricing Click for Quote Price Match Request
