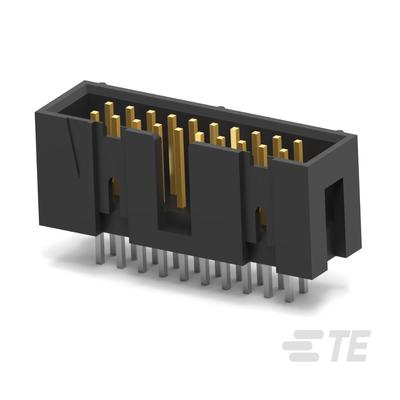

Older Equivalent
636-2027
636-2027

In Stock: 2,876

Minimum Order: 65

VIEW PRODUCT
1761681-7 by te connectivity / amp brand
Image is representational - see mfr. specs

1761681-7

TE Connectivity / AMP Brand

IDC LOW PRO HDR 20P VERT HT BLACK ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1761681-7 is a PCB edge connector header designed for board-to-board interconnection applications. The connector features a 2.54 mm [0.100 in] pitch spacing and phosphor bronze posts with gold plating (0.00038 mm min) on the mating area and tin-lead plating (0.00254 mm min) on the solder end, with nickel underplating (0.00127 mm min) on the entire post. The housing is constructed from PCT material rated UL94V-0 in black color. This connector is suitable for applications requiring reliable PCB edge connections with high-temperature material options available.

Product Highlights:

  • Connector Type = Pin Header
  • Low Profile
  • Number of Positions = 20
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 17616817

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1761681-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
80
Package Type:
Tray
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 10,921

Ships today, if you order in

Minimum Order Quantity: 80

Multiple: 80

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
80
$1.37
160
$1.35
320
$1.32
560
$1.30
1,040
$1.27
2,560
$1.25
5,040
$1.15
7,520 +
$1.13
Suppliers Standard Package
